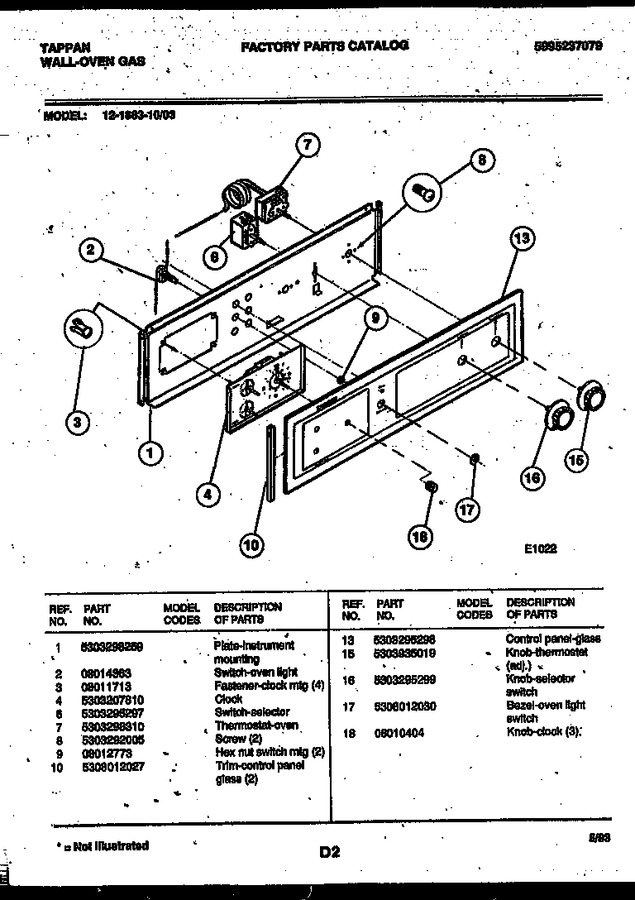

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Gas Control
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303298259 | Plate-instrument Mounting |
|
- | |||||
| 2 | 08014363 | Switch-oven Light |
|
- | |||||
| 3 | 08011713 | Fastener-clock Mtg (4) |
|
- | |||||
| 4 | 5303207810 | Clock |
|
- | |||||
| 6 | 5303295297 | Switch-selector |
|
- | |||||
| 7 | 5303298310 | Thermostat-oven |
|
- | |||||
| 8 | 5303292005 | Screw (2) |
|
- | |||||
| 9 | 08012773 | Hex Nut Switch Mtg (2) |
|
- | |||||
| 10 | 5308012027 | Trim-control Panel Glass (2) |
|
- | |||||
| 13 | 5303295298 | Control Panel-glass |
|
- | |||||
| 15 | 5303935019 | Knob-thermostat (adj.) |
|
- | |||||
| 16 | 5303295299 | Knob-selector Switch |
|
- | |||||
| 17 | 5308012030 | Bezel-oven Light Switch |
|
- | |||||
| 18 | 08010404 | Knob-clock (3) |
|
- |
