Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303298309 Liner Oven Door Appelez-nous -
2 08012775 Screw 10-24 X 1-15/16`` Handle (2) Appelez-nous -
3 3131974 Fastener-push In Appelez-nous -
4 08010463 Fastener-clip Appelez-nous -
5 5303207137 Glass-inner Appelez-nous -
6 08012628 Shield-wool Appelez-nous -
7 5308012625 Glass-outer Appelez-nous -
8 08012776 Fastener Spacer (2) Appelez-nous -
9 08010461 Spacer-handle-inner (2) Appelez-nous -
10 08016344 Trim-frame Appelez-nous -
11 5308012081 Spacer-handle (2) Appelez-nous -
12 08012626 Handle Appelez-nous -
*85346 08016432 Screw 8 X 3/8 (6) Appelez-nous -
*85346 3200314 Insulation Appelez-nous -

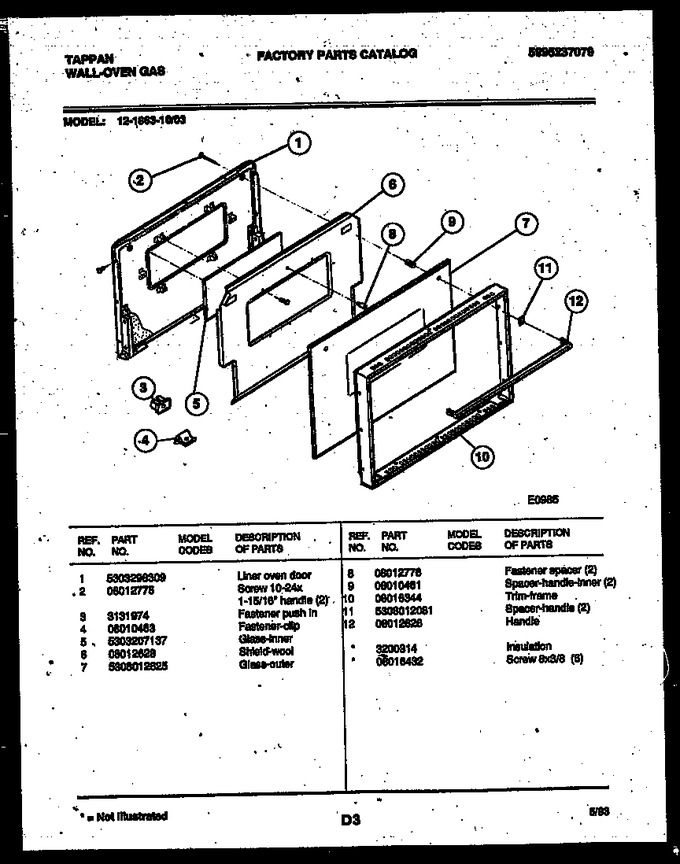

    View Diagram in Separate Window     Print Icon   Print Part List
