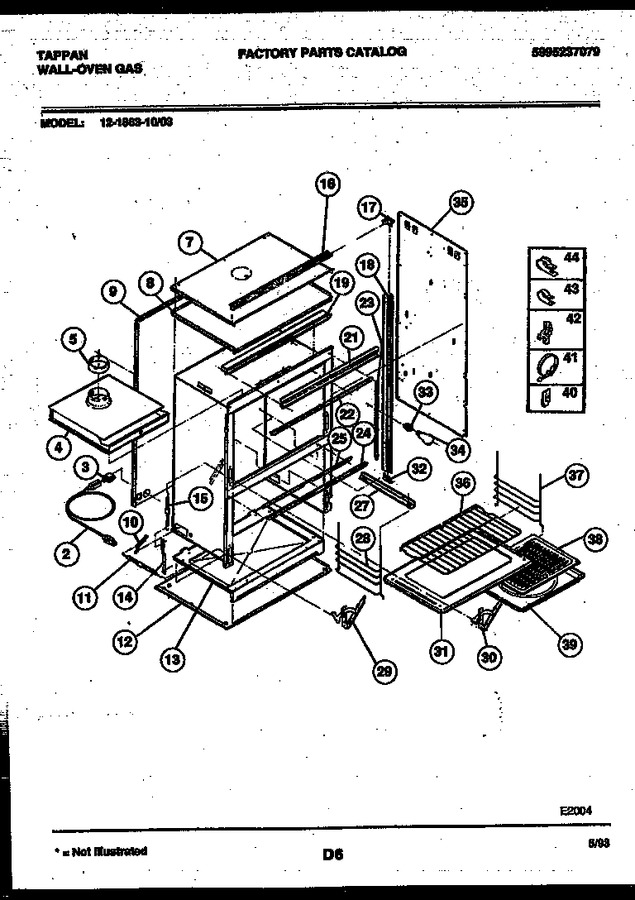

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295307		Cord-power Supply		Appelez-nous	-
3	5303295308		Plug-disconnect		Appelez-nous	-
4	5303298341		Flue-top Assy		Appelez-nous	-
5	5303298340		Flue-cap		Appelez-nous	-
7	3018718		Wrapper-top Outer		Appelez-nous	-
8	5303298317		Wrapper-top-inner		Appelez-nous	-
9	5303298319		Wrapper-back-outer		Appelez-nous	-
10	5301506858		Bracket-spring Adj. Lower (2)		Appelez-nous	-
11	5303207652		Spring-oven Door Lower-l&r (2)		Appelez-nous	-
12	5303210187		Base-main		Appelez-nous	-
13	5303298338		Bottom-sub		Appelez-nous	-
14	5303295309		Bracket-spring Adj. Upper (2)		Appelez-nous	-
15	5303207651		Spring-oven Door Upper L&r		Appelez-nous	-
16	5303208053		Trim-top		Appelez-nous	-
17	08012631		Cap-end-top L&r		Appelez-nous	-
18	5303208054		Trim-side-lh		Appelez-nous	-
19	3205850		Flue Box-horiz.		Appelez-nous	-
21	5303295310		Trim-front		Appelez-nous	-
22	5303207644		Seal-door-top Bake Oven		Appelez-nous	-
23	5303295311		Seal-door-side-bake Oven (2)		Appelez-nous	-
24	5303207644		Seal-door-top-broiler-black		Appelez-nous	-
25	5303295312		Shield-heat		Appelez-nous	-
27	5303295313		Angle-rack Guide		Appelez-nous	-
28	5303209887		Glide-broiler Rack (2)		Appelez-nous	-
29	5303205939		Cam-oven Door Assy-lh		Appelez-nous	-
29	5303298312		Cam-oven Door Assy Lh		Appelez-nous	-
30	5303208313		Cam-oven Door Assy-rh		Appelez-nous	-
30	5303205940		Cam-oven Door Assy-rh		Appelez-nous	-
31	5303298314		Bottom-oven-gray Enamel		Appelez-nous	-
32	08012632		Cap-vertical-trim-bottom Lh		Appelez-nous	-
33	08011171		Socket-oven Lght		Appelez-nous	-
34	3201908		Oven Light (2)		Appelez-nous	-
35	5303210186		Wrapper-side-outer-l&r		Appelez-nous	-
36	08012158		Rack-oven,upper ,(2)		Appelez-nous	-
37	3018717		Glide-oven Rack		Appelez-nous	-
38	5303293415		Insert-broiler Pan		Appelez-nous	-
39	5303293416		Pan-broiler		Appelez-nous	-
40	3203010		Fastener U-type (2)   (Replaces: 5303012323)				$ 14.89
41	08012195		Fastener-cable		Appelez-nous	-
42	5303284616		Thermostat Bulb Clip (2)				$ 9.86
43	08067944		Fastener-wire Clip		Appelez-nous	-
44	08012198		Fastener-clamp-power Cord		Appelez-nous	-
*85352	3200323		Insulation-oven-top/sides		Appelez-nous	-
*85352	08012795		Screw 8-18 X 2-1/4 (2)		Appelez-nous	-
*85353	3200313		Insulation-top/back		Appelez-nous	-
10A	5303298342		Screw (non-illustrated)		Appelez-nous	-
15A	08012781		Sleeve-door Spring (4) (non-illustrated)		Appelez-nous	-
17A	5303298343		Screw 8 X 1/4`` (non-illustrated)		Appelez-nous	-
18A	5303208056		Trim-side-rh		Appelez-nous	-
32A	08012633		Cap-vertical-trim Bottom Rh		Appelez-nous	-
36A	3201495		Rack-oven,lower		Appelez-nous	-
