SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts

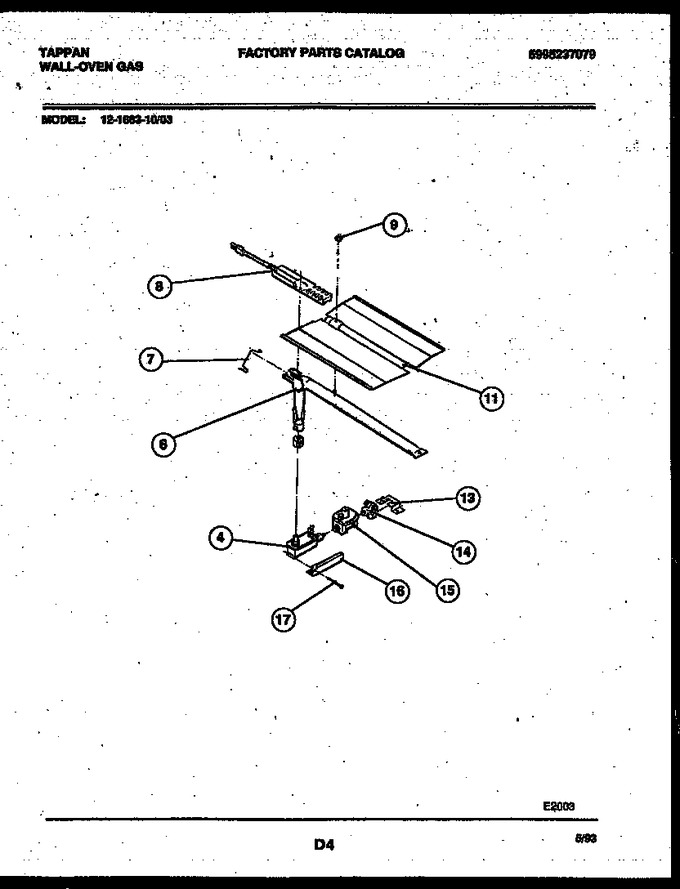

04 - Gas Control
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303210156 | Valve-safety |
|
- | |||||
| 6 | 5303207603 | Burner-oven |
|
- | |||||
| 7 | 5303295303 | Retainer-oven Burner |
|
- | |||||
| 8 | 5303207521 | Igniter-oven Burner |
|
- | |||||
| 9 | 3051038 | Hex Nut 10-24 Baffle Mtg. |
|
- | |||||
| 11 | 5303131517 | Baffle-oven Burner |
|
- | |||||
| 13 | 5303295306 | Bracket-safety Valve Support |
|
- | |||||
| 14 | 5303295305 | Valve-shut Off |
|
- | |||||
| 15 | 5303210167 | Control-regulator |
|
- | |||||
| 16 | 5303295304 | Bracket-safety Valve |
|
- |
