SELECT A DIAGRAM
02 - Cabinet Parts
03 - Compressor Parts
04 - Air Handling Parts
05 - Unit Parts
New Model Search:

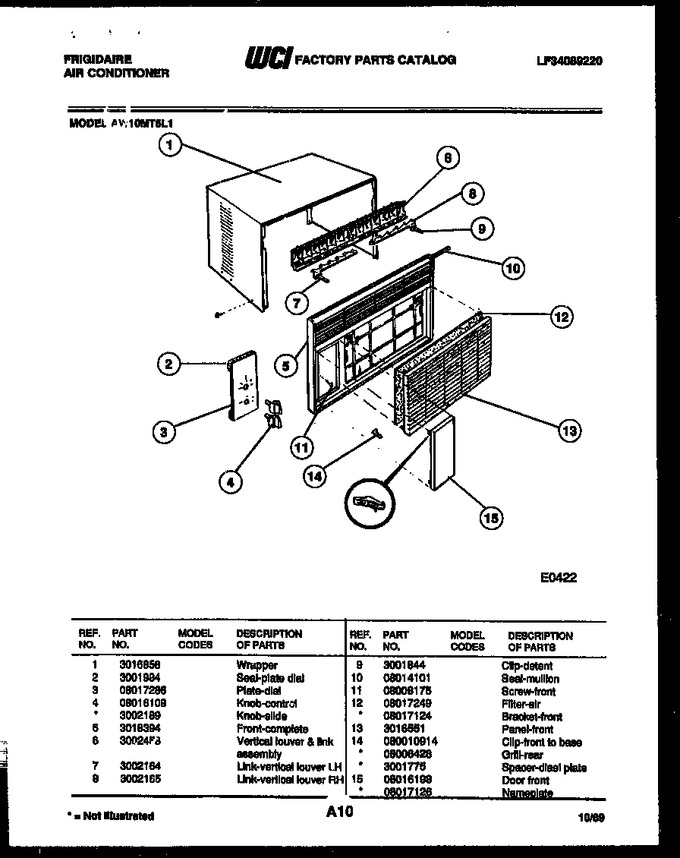

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016858 | Wrapper |
|
- | |||||
| 2 | 3001984 | Seal-plate Dial |
|
- | |||||
| 3 | 08017286 | Plate - Dial |
|
- | |||||
| 4 | 08016109 | Knob-control |
|
- | |||||
| 5 | 3018394 | Front-complete |
|
- | |||||
| 6 | 3002458 | Vertical-louver Link Assembly |
|
- | |||||
| 7 | 3002164 | Link-vertical Louver Lh |
|
- | |||||
| 8 | 3002165 | Link-vertical Louver Rh |
|
- | |||||
| 9 | 3001844 | Clip-detent |
|
- | |||||
| 10 | 08014101 | Seal-mullion |
|
- | |||||
| 11 | 08008175 | Screw-front |
|
- | |||||
| 12 | 08017249 | Filter - Air |
|
- | |||||
| 13 | 3016551 | Panel - Front |
|
- | |||||
| 14 | 080010914 | Clip-front To Base |
|
- | |||||
| 15 | 08016198 | Door-front |
|
- | |||||
| *27477 | 08017126 | Name Plate |
|
- | |||||
| 12A | 08017124 | Bracket-front, (non-illustrated) |
|
- | |||||
| 14A | 08006428 | Grill-rear (non-illustrated) |
|
- | |||||
| 14B | 3001775 | Spacer-dial Plate, ( Non-illustrated) |
|
- | |||||
| 4A | 3002189 | Knob-slide (non-illustrated) |
|
- |
