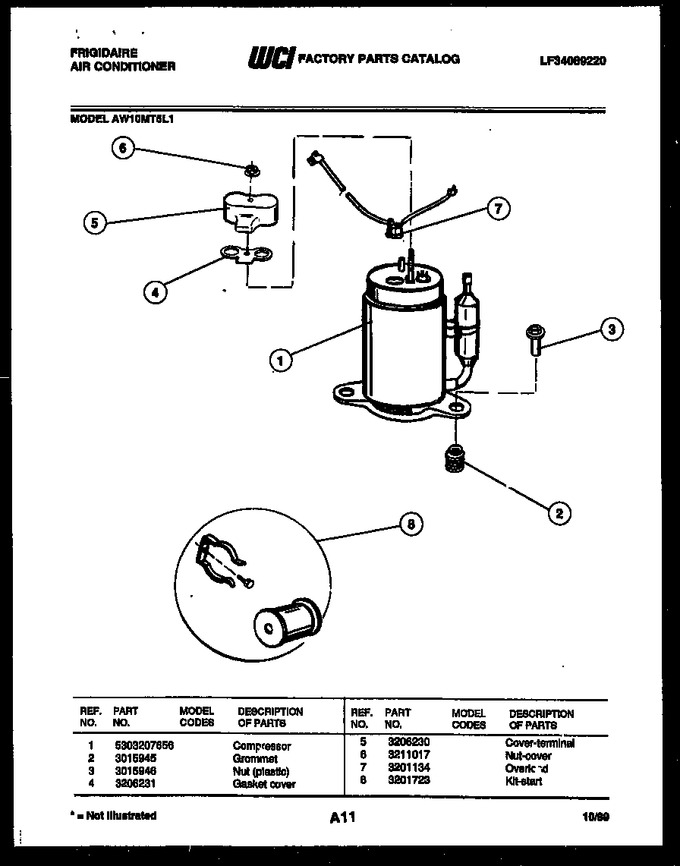

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207656 | Compressor |
|
- | |||||
| 2 | 3015945 | Grommet |
|
- | |||||
| 3 | 3015946 | Nut (plastic) |
|
- | |||||
| 4 | 3206231 | Gasket-cover |
|
- | |||||
| 5 | 3206230 | Cover-terminal |
|
- | |||||
| 6 | 3211017 | Nut-cover |
|
- | |||||
| 7 | 3201134 | Overload |
|
- | |||||
| 8 | 3201723 | Kit-start |
|
- |
