02 - Cabinet Parts
03 - Compressor Parts
04 - Air Handling Parts
05 - Unit Parts
New Model Search:

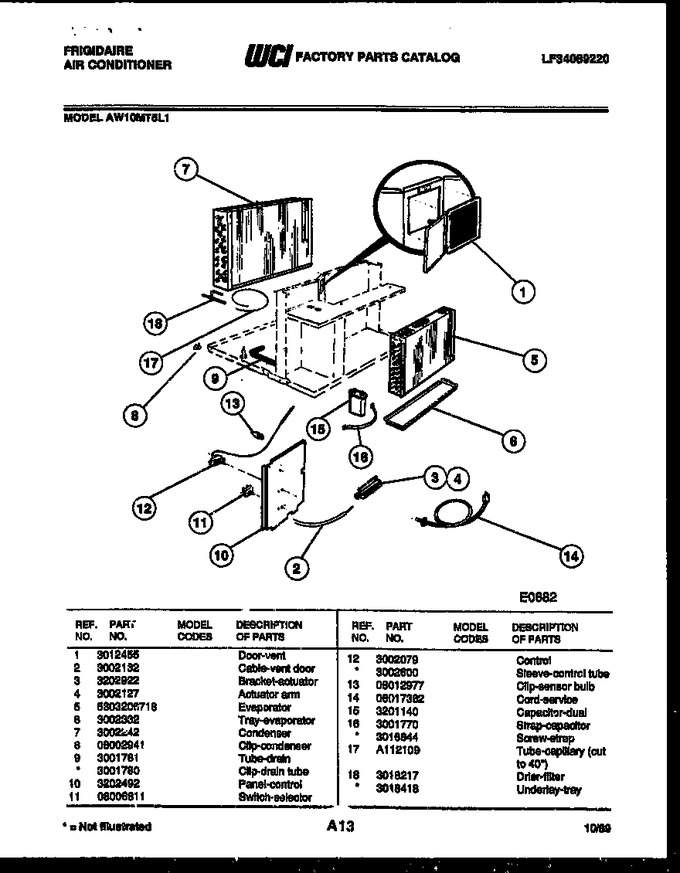

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3012455 | Door-vent |
|
- | |||||
| 2 | 3002132 | Cable - Vent Door |
|
- | |||||
| 3 | 3202922 | Bracket-actuator |
|
- | |||||
| 4 | 3002127 | Actuator Arm |
|
- | |||||
| 5 | 5303206718 | Evaporator |
|
- | |||||
| 6 | 3002332 | Tray-evaporator |
|
- | |||||
| 7 | 3002242 | Condenser |
|
- | |||||
| 8 | 08002941 | Clip |
|
- | |||||
| 9 | 3001761 | Tube-drain |
|
- | |||||
| 10 | 3202492 | Panel-control |
|
- | |||||
| 11 | 08006811 | Switch-selector |
|
- | |||||
| 12 | 3002079 | Control |
|
- | |||||
| 13 | 08012977 | Clip-sensor Bulb |
|
- | |||||
| 14 | 08017362 | Cord - Service |
|
- | |||||
| 15 | 3201140 | Capacitor-dual |
|
Immediately | $ 19.08 | ||||
| 16 | 3001770 | Strap-capacitor |
|
- | |||||
| 17 | A112109 | Tube, Capillary (cut To 40``) |
|
- | |||||
| 18 | 3018217 | Drier-filter |
|
- | |||||
| *27479 | 3018418 | Underlay-tray |
|
- | |||||
| 12A | 3002600 | Sleeve-control Tube (non-illustrated) |
|
- | |||||
| 16A | 3016844 | Screw-strap (non-illustrated) |
|
- | |||||
| 9A | 3001780 | Clip-drain Tube (non-illustrated) |
|
- |
