02 - Cabinet Parts
03 - Compressor Parts
04 - Air Handling Parts
05 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

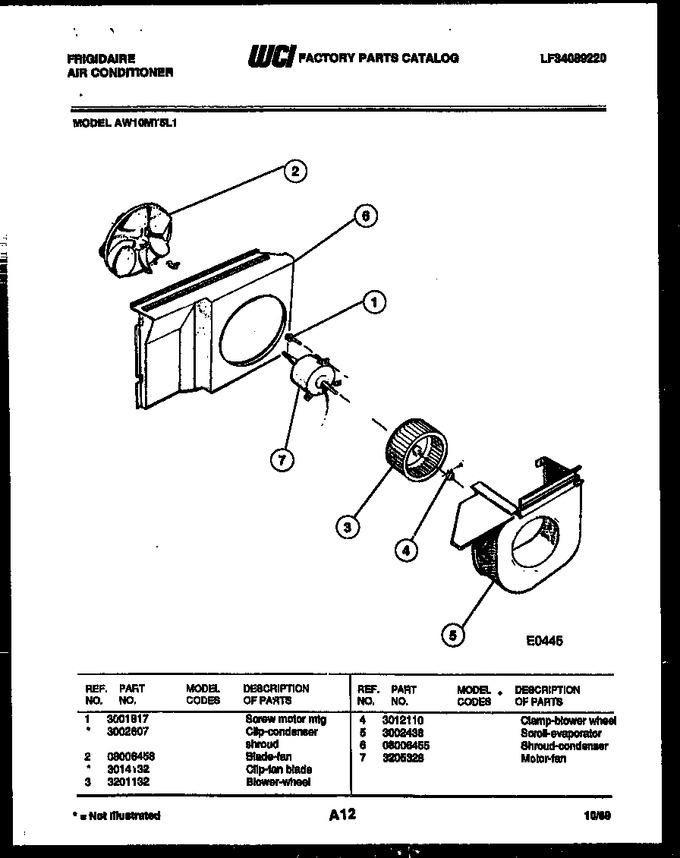

| 1 | 3001817 | Screw-motor Mtg |
|
- | |||||
| 2 | 08006458 | Blade-fan |
|
- | |||||
| 3 | 3201132 | Blower-wheel |
|
- | |||||
| 4 | 3012110 | Clamp-blower Wheel |
|
- | |||||
| 5 | 3002438 | Scroll-evaporator |
|
- | |||||
| 6 | 08006455 | Shroud-condenser |
|
- | |||||
| 7 | 3205328 | Motor-fan |
|
- | |||||
| 1A | 3002607 | Clip-condenser Shroud (non-illustrated) |
|
- | |||||
| 2A | 3014132 | Clip-fan Blade (non-illustrated) |
|
- |
