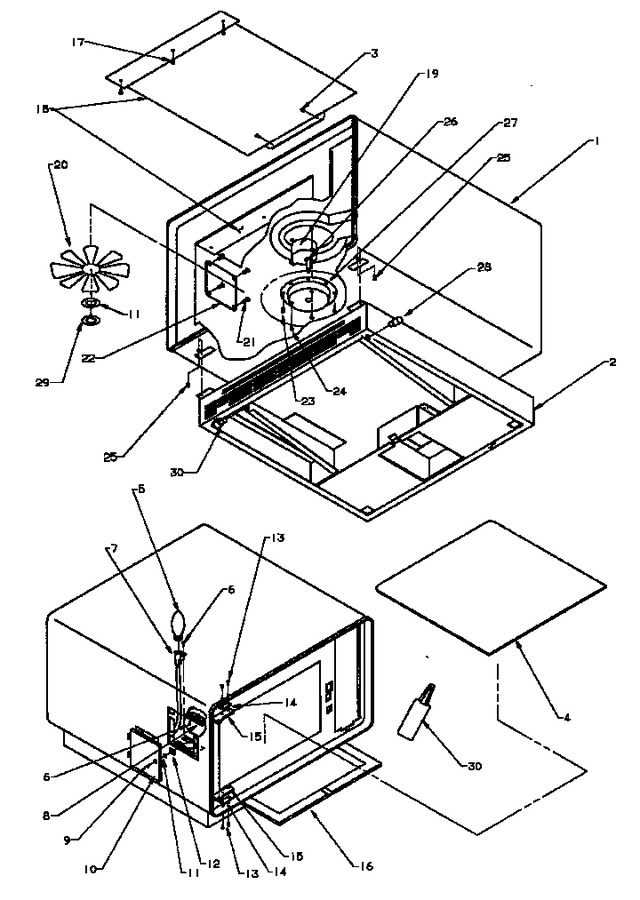

01 - Back Panel And Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Elec Components & Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0163270 | Assy, Cavity |
|
- | |||||
| 2 | R0163258 | Kit, Base |
|
- | |||||
| 3 | 5039-T | .187 Dia Push Rivet |
|
- | |||||
| 4 | M50D46 | Shelf |
|
- | |||||
| 5 | 25T6 | Light Bulb (Replaces: 44865P01) |
|
- | |||||
| 6 | 5027-ZZ | Screw |
|
- | |||||
| 7 | 2040100701 | Socket Lamp |
|
- | |||||
| 8 | 4520500504 | Fire Sensor Assy |
|
- | |||||
| 9 | 5042-B | Screw, Sm |
|
- | |||||
| 10 | 10785601 | Cover Light (ss) |
|
- | |||||
| 11 | 32383P01 | Wshr-rubber |
|
- | |||||
| 12 | 5072-D | No.8-32 Captive Nut(25) |
|
- | |||||
| 13 | 5149-C | No.8-32 Pan Hd Mach Scr (25) |
|
- | |||||
| 14 | 45540P01 | Shim-hinge |
|
- | |||||
| 15 | 4180032601 | Assy, Hinge |
|
- | |||||
| 16 | 45412P01 | Filter Air |
|
- | |||||
| 17 | Y00000000 | See Note Rivet-cover Mounting |
|
- | |||||
| 18 | 45422P01 | Stirrer Cover |
|
- | |||||
| 19 | R0163259 | Kit, Stirrer Motor |
|
- | |||||
| 20 | M35D53 | Kit, Stirrer Blade |
|
- | |||||
| 21 | 42192P01 | Rivet-plastcx |
|
- | |||||
| 22 | 2570000202 | Lamp Lens |
|
- | |||||
| 23 | 5078-CC | Screw |
|
- | |||||
| 24 | 5001-ZZ | No.4-40 Pan Hd Mach Scr |
|
- | |||||
| 25 | 5067-A | .187 Dia Pop Rivet Steel |
|
- | |||||
| 26 | 24597P01 | Gasket |
|
- | |||||
| 27 | 45437P01 | Support Mtr |
|
- | |||||
| 28 | 5571173001 | Standoff, Filter Guide |
|
- | |||||
| 29 | WP3195558 | Pushnut (Replaces: 5147-V) |
|
$ 7.68 | |||||
| 30 | M13D2 | Sealer |
|
- |
