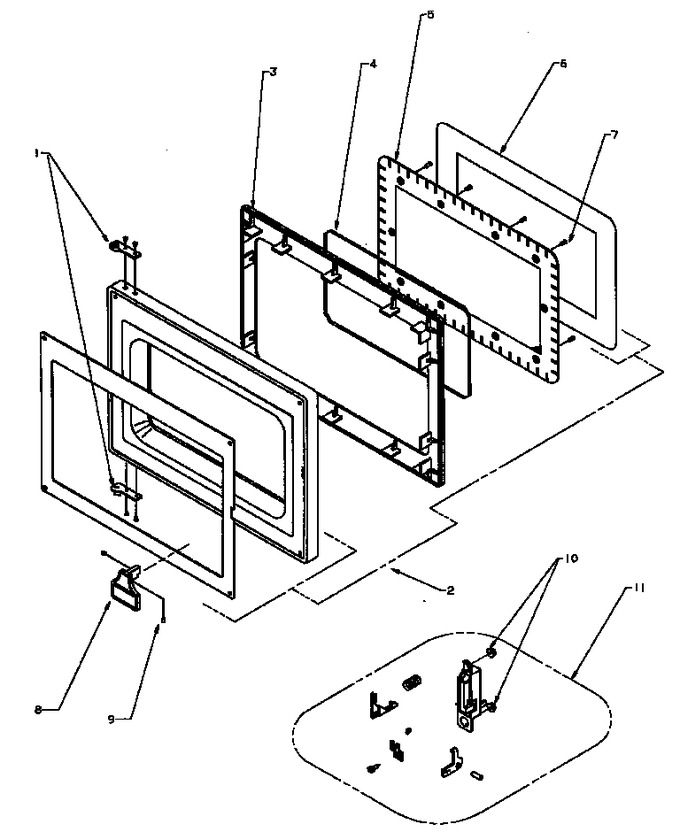

01 - Back Panel And Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Elec Components & Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0163252 | Hinge Asy Kit |
|
- | |||||
| 2 | R0163257 | Outer Door Assy. |
|
- | |||||
| 3 | R0163253 | Filler-door |
|
- | |||||
| 4 | R0163254 | Door-glass |
|
- | |||||
| 5 | R0163255 | Inner Door Kit |
|
- | |||||
| 6 | 10785001 | Window, Inner Door |
|
- | |||||
| 7 | 5146-DD | No.8 Ab X 3/8`` Screw |
|
- | |||||
| 8 | 3000029501 | Door Handle-e Ct |
|
- | |||||
| 9 | 5051032202 | Set Screw No.10 X .25 |
|
- | |||||
| 10 | 5015-T | No.10-24 Flange Whiz-lk Nut |
|
- | |||||
| 11 | R0163256 | Door Latch Kit |
|
- |
