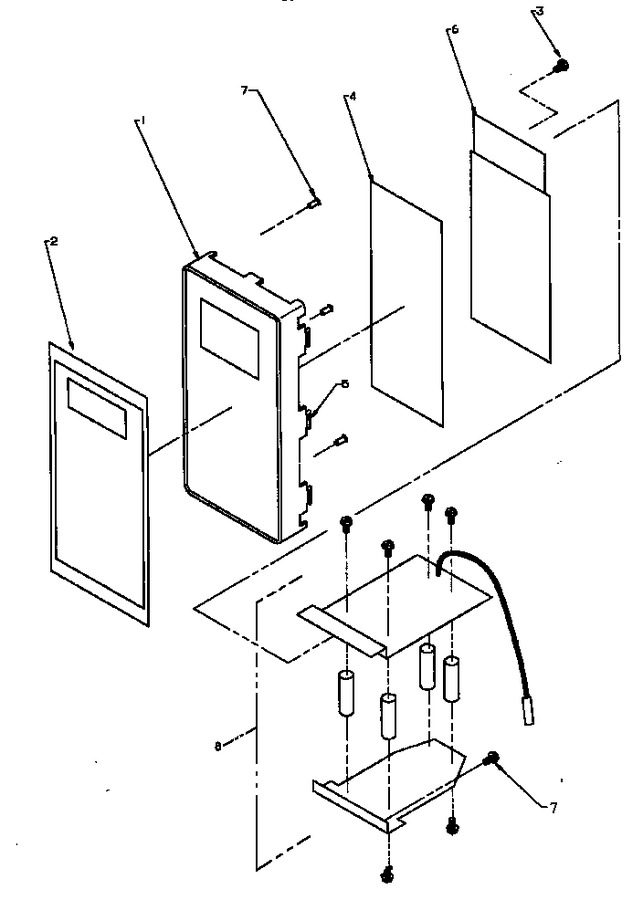

01 - Back Panel And Components
02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Elec Components & Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 45398P04 | Frame, Cont Pnl |
|
- | |||||
| 2 | 4100011201 | Touch Panel |
|
- | |||||
| 3 | 5149-P | Screw,no.8-32 X 1-1/4 Fl Hd Scre |
|
- | |||||
| 4 | 4180031801 | Back Plate |
|
- | |||||
| 5 | 5522546002 | Clip |
|
- | |||||
| 6 | R0163268 | Controller |
|
- | |||||
| 7 | 5057-N | No.6 Pan Hd Machine Screw |
|
- | |||||
| 8 | R0163267 | Bar Code Scanner |
|
- |
