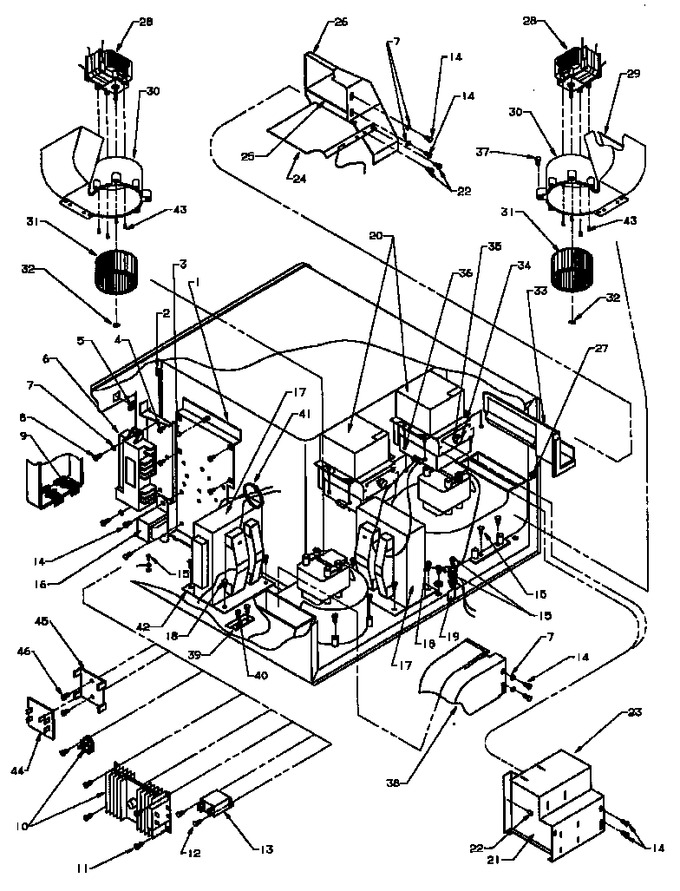

01 - Back Panel And Components


02 - Cavity Assy


03 - Control Panel Assy


04 - Door Assy


05 - Interior Elec Components & Mtg Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10791901		Panel, Component		Appelez-nous	-
2	42365P01		U-clip		Appelez-nous	-
3	Y00000000		See Note Nut-keps		Appelez-nous	-
5	5072-D		No.8-32 Captive Nut(25)		Appelez-nous	-
6	4180030801		Svc Interlock Switch Asy		Appelez-nous	-
7	Y00000000		See Note Washer-flat		Appelez-nous	-
8	5015-X		Screw, Sm		Appelez-nous	-
9	4520400703		Assy, Connector		Appelez-nous	-
10	D7681501		Triac				$ 44.05
11	5042-B		Screw, Sm		Appelez-nous	-
12	5074-DD		Screw K		Appelez-nous	-
13	38806P04		Relay		Appelez-nous	-
14	5027-ZZ		Screw		Appelez-nous	-
15	5078-CC		Screw		Appelez-nous	-
16	10729301		Transformer, L.v.		Appelez-nous	-
17	10133702		Transformer		Appelez-nous	-
18	5021032501		Screw		Appelez-nous	-
19	39126P01		Cable Clip		Appelez-nous	-
20	10794401		Magnetron		Appelez-nous	-
21	45752P03		Duct Divider		Appelez-nous	-
22	5039-T		.187 Dia Push Rivet		Appelez-nous	-
23	45751P03		Duct, Housing		Appelez-nous	-
24	46762P01		Deflector-air M65d344		Appelez-nous	-
25	45402P01		M65d346 Divider Air		Appelez-nous	-
26	45407P01		M65d345 Duct, Air		Appelez-nous	-
27	5147-ZZ		U-clip		Appelez-nous	-
28	2010000701		Blower Motor 120v 60		Appelez-nous	-
29	41129P01		Divider, Duct		Appelez-nous	-
30	45559P01		Housing, Blower		Appelez-nous	-
31	36300P01		Wheel, Blower M35d39		Appelez-nous	-
32	Y00000000		See Note E-ring		Appelez-nous	-
33	45753P01		Transition-cav Exh Fs-10		Appelez-nous	-
34	1751802501		Protector,thermal 180c 25 Amp		Appelez-nous	-
35	M0251717		Screw		Appelez-nous	-
36	35691P01		Ia 5mm Flange Whiz-lk Nut (25)		Appelez-nous	-
37	5042-P		Screw 1``		Appelez-nous	-
38	46385P01		Duct Assembly		Appelez-nous	-
39	45537P01		Clip, Blower Mtg		Appelez-nous	-
40	5067-A		.187 Dia Pop Rivet Steel		Appelez-nous	-
41	5140-FF		Tie-elect.		Appelez-nous	-
42	45602P01		Clip, Transformer		Appelez-nous	-
43	5072-V		Screw K		Appelez-nous	-
44	10791801		Board, P.c.		Appelez-nous	-
45	10741801		Bracket, P.c. Board		Appelez-nous	-
46	M0224803		Screw, Tf		Appelez-nous	-
