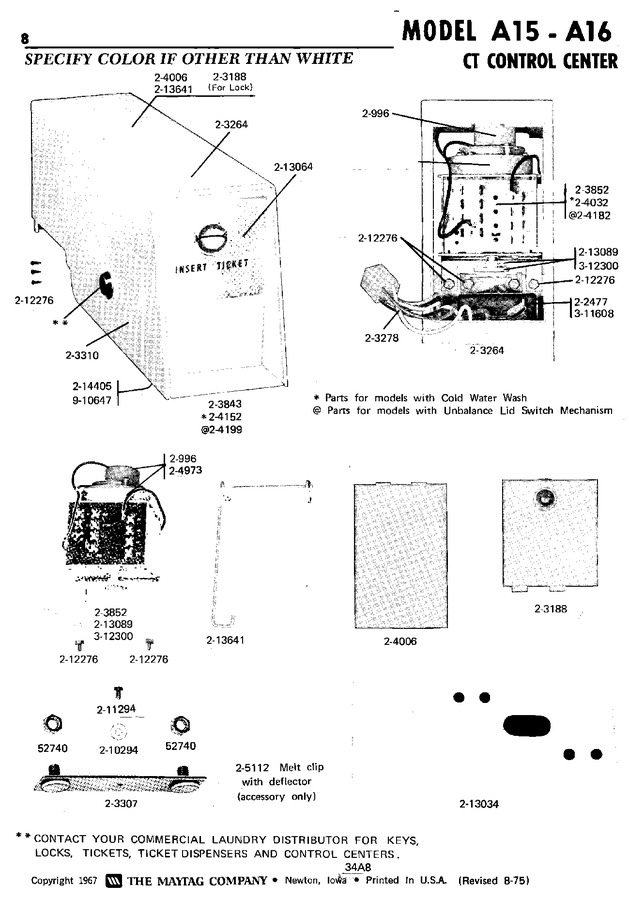

02 - Ct Control Center


03 - Ct Control Center Components


04 - Control Panels


05 - Rear View


06 - Top Cover


07 - Motor Mount, Base Frame & Centering Sprs


08 - Power Unit & Center Assembly


09 - Brake & Clutch Assembly


10 - Agitator


11 - Water Valve


12 - Water Injection System, Hoses & Clamps


13 - Front Panel Removed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP62739		Nut   (Replaces: Y052740)	00			$ 6.85
002	NLA		Timer Motor	00	Appelez-nous	-
003	Y201110		Wire Connector	00	Appelez-nous	-
004	202477		Electronic Control	00	Appelez-nous	-
005	203188		Door, Access (wht)	00	Appelez-nous	-
006	NLA		Outer Case (wht)	00	Appelez-nous	-
007	NLA		Harness, Ticket Control	00	Appelez-nous	-
008	NLA		Mtg. Strap----na	00	Appelez-nous	-
009	NLA		Access Door (wht)	00	Appelez-nous	-
010	NLA		Ticket Receiver Assembly	00	Appelez-nous	-
011	NLA		Timer	00	Appelez-nous	-
012	NLA		Access Door (wht)	00	Appelez-nous	-
013	NLA		Timer W/knob & Pin	00	Appelez-nous	-
014	NLA		Timer W/knob & Pin (ct)	00	Appelez-nous	-
015	NLA		Control Center W/gasket	00	Appelez-nous	-
016	204973		Timer Motor	00	Appelez-nous	-
017	NLA		Double Melt Clip W/deflecto	00	Appelez-nous	-
018	210294		Washer	00	Appelez-nous	-
019	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
020	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
021	NLA		Gasket Under Control Center	00	Appelez-nous	-
022	NLA		Front Plate, Ticket Control	00	Appelez-nous	-
023	213089		Knob, Timer	00	Appelez-nous	-
024	NLA		Latch, Access Door	00	Appelez-nous	-
025	NLA		Moisture Shield	00	Appelez-nous	-
026	Y312300		Groov-pin	00	Appelez-nous	-
027	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
