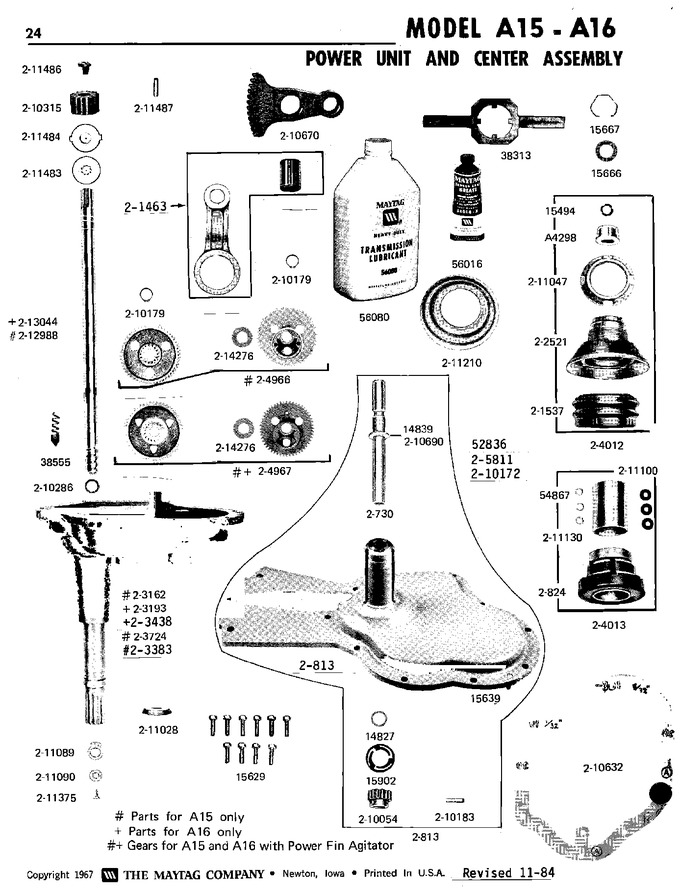

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Seal, Agitator Drive Shaft | 00 |
|
- | ||||
| 002 | WP6-0A57420 | Coil Spring-center Seal (Replaces: Y014792) | 00 |
|
Immediately | $ 33.64 | |||
| 003 | Y014827 | Washer-center Shaft | 00 |
|
- | ||||
| 004 | Y014839 | Collar-drive Shaft | 00 |
|
$ 8.33 | ||||
| 005 | Y015149 | Brass Washer-agitator Seal | 00 |
|
- | ||||
| 006 | Y015494 | Stop Ring-agitator Shaft | 00 |
|
- | ||||
| 007 | Y015629 | Bolt, Grinding Chamber (drain) | 00 |
|
- | ||||
| 008 | NLA | Dowel Pin | 00 |
|
- | ||||
| 009 | WPY015666 | Washer, Retaining (cntr Seal) (Replaces: Y015666) | 00 |
|
$ 6.96 | ||||
| 010 | Y015667 | Retaining Ring | 00 |
|
$ 8.70 | ||||
| 011 | Y015902 | Spring, Agitator | 00 |
|
- | ||||
| 012 | 038313 | Wrench, Spanner | 00 |
|
- | ||||
| 013 | Y038555 | Tool-install Center Shaft | 00 |
|
- | ||||
| 014 | NLA | Cap Screw (3/8-16 X 1) | 00 |
|
- | ||||
| 015 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 016 | Y054866 | Lock Washer | 00 |
|
- | ||||
| 017 | Y054867 | Washer, Lock | 00 |
|
- | ||||
| 018 | Y055977 | Turbine Oil, 4 Oz. | 00 |
|
- | ||||
| 019 | Y055978 | Rubber Adhesive, 2 Oz Tube | 00 |
|
$ 38.40 | ||||
| 020 | WPY056016 | Center Seal Grease, 4oz Tub (Replaces: Y056016) | 00 |
|
$ 14.43 | ||||
| 021 | Y056080 | Trans Lube - Auto, 34 Oz. | 00 |
|
- | ||||
| 022 | 200730 | Agitator Shaft | 00 |
|
- | ||||
| 023 | NLA | Gear Case Cover Assembly | 00 |
|
- | ||||
| 024 | 6-2040130 | Bearing, Tub (Replaces: 200824) | 00 |
|
Immediately | $ 73.68 | |||
| 025 | NLA | Pitman W/wrist Pin | 00 |
|
- | ||||
| 026 | 201537 | Seal & Spring | 00 |
|
- | ||||
| 027 | 202521 | Mounting Stem | 00 |
|
- | ||||
| 028 | NLA | Gear Housing W/studs & Tube | 00 |
|
- | ||||
| 029 | 204967 | Gear Kit-power Fin Agitator | 00 |
|
- | ||||
| 030 | NLA | Counterweight | 00 |
|
- | ||||
| 031 | 210054 | Pinion | 00 |
|
- | ||||
| 032 | NLA | Lock Washer | 00 |
|
- | ||||
| 033 | NLA | Retaining Ring | 00 |
|
- | ||||
| 034 | 210183 | Groov-pin, 1/4 X 1-1/4 | 00 |
|
- | ||||
| 035 | 210286 | Seal | 00 |
|
$ 14.27 | ||||
| 036 | 210315 | Pinion | 00 |
|
- | ||||
| 037 | NLA | Bolt | 00 |
|
- | ||||
| 038 | 210632 | Gasket | 00 |
|
- | ||||
| 039 | NLA | Segment | 00 |
|
- | ||||
| 040 | NLA | Bearing | 00 |
|
- | ||||
| 041 | 211028 | Deflector,water (drive Tube) | 00 |
|
- | ||||
| 042 | 211047 | Nut, Clamping (inner Tub) | 00 |
|
- | ||||
| 043 | WP211089 | Lug, Stop (Replaces: 211089) | 00 |
|
$ 10.16 | ||||
| 044 | WP22003555 | Washer, Lock (Replaces: 211090) | 00 |
|
$ 19.26 | ||||
| 045 | 211100 | Washer, Cushion | 00 |
|
- | ||||
| 046 | 211130 | Bearing Liner, Tub Bearing | 00 |
|
$ 724.10 | ||||
| 047 | 211210 | Washer, Clamping Nut (stnls) | 00 |
|
$ 5.84 | ||||
| 048 | WP912618 | Screw, Stop Lug (cntr Shaft) (Replaces: 211375) | 00 |
|
$ 6.98 | ||||
| 049 | WP6-2114830 | Washer, Splined (Replaces: 211483) | 00 |
|
$ 7.05 | ||||
| 050 | 211484 | Lug Washer | 00 |
|
$ 4.83 | ||||
| 051 | 211486 | Screw, 3/8-16 X 1/2 Inch | 00 |
|
- | ||||
| 052 | NLA | Groov-pin | 00 |
|
- | ||||
| 053 | 22001423 | Set Screw, Mtg. Stem (Replaces: 211618) | 00 |
|
$ 45.54 | ||||
| 054 | NLA | Spring, Tub Seal | 00 |
|
- | ||||
| 055 | NLA | Washer, Gears | 00 |
|
- |
