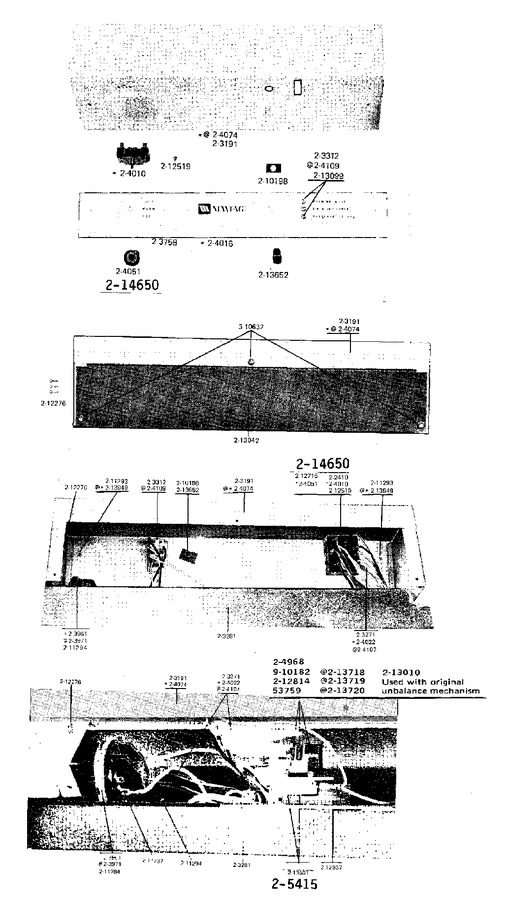

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Screw (no.6-32 X 3/8) | 00 |
|
- | ||||
| 002 | NLA | Major Wire Harness | 00 |
|
- | ||||
| 003 | NLA | Top Cover (wht) | 00 |
|
- | ||||
| 004 | 203961 | Pressure Switch | 00 |
|
- | ||||
| 005 | 204010 | Temperature Switch | 00 |
|
- | ||||
| 006 | NLA | Control Panel Assembly | 00 |
|
- | ||||
| 007 | 204051 | Knob | 00 |
|
Immediately | $ 164.03 | |||
| 008 | NLA | Control Cover (wht) | 00 |
|
- | ||||
| 009 | 204109 | 3 Bulb Signal Light | 00 |
|
- | ||||
| 010 | 204968 | Plunger & Bracket Assembly--w | 00 |
|
$ 26.05 | ||||
| 011 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 012 | 210198 | Fastener | 00 |
|
- | ||||
| 013 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 014 | WP248562 | Wire Connector (Replaces: 211737) | 00 |
|
$ 6.95 | ||||
| 015 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 016 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 00 |
|
$ 6.07 | ||||
| 017 | 212937 | Moisture Barrier | 00 |
|
- | ||||
| 018 | NLA | Pin, Lid Switch | 00 |
|
- | ||||
| 019 | 213042 | Back Panel | 00 |
|
- | ||||
| 020 | 213099 | Lens, Control Panel | 00 |
|
- | ||||
| 021 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 00 |
|
$ 12.03 | ||||
| 022 | NLA | Lid Bumper | 00 |
|
- | ||||
| 023 | 213718 | Lid Switch Plunger | 00 |
|
$ 12.10 | ||||
| 024 | 213719 | Unbalance Lever | 00 |
|
- | ||||
| 025 | WP213720 | Spring (Replaces: 213720) | 00 |
|
$ 7.63 | ||||
| 026 | WP355214 | Screw, No.8-18 X 5/16 Inch (Replaces: 213949) | 00 |
|
Immediately | $ 7.26 | |||
| 027 | 214135 | Fastener Clip | 00 |
|
- | ||||
| 028 | 214650 | Screw, 2-4051 Knob | 00 |
|
$ 62.55 | ||||
| 029 | Y310632 | Screw | 00 |
|
- | ||||
| 030 | W10756178 | Screw (Replaces: 910182) | 00 |
|
$ 5.39 | ||||
| 031 | NLA | Temperature Switch | 00 |
|
- | ||||
| 032 | NLA | Control Cover | 00 |
|
- | ||||
| 033 | NLA | 3 Bulb Signal Light (120-60) | 00 |
|
- | ||||
| 034 | NLA | Control Panel W/lens | 00 |
|
- | ||||
| 035 | NLA | Screw, No.8 X 1/2 Inch | 00 |
|
- | ||||
| 036 | NLA | Knurled Nut, Temp. Switch | 00 |
|
- |
