Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 Y201110 Wire Connector 00 Appelez-nous -
002 NLA Cam Plate Assembly 00 Appelez-nous -
003 NLA Switch, Ticket Control 00 Appelez-nous -
004 NLA Switch Actuator 00 Appelez-nous -
005 NLA Jumper Wire (black) 00 Appelez-nous -
006 202477 Electronic Control 00 Appelez-nous -
007 202479 Lamp, Ticket Control 00 Appelez-nous -
008 202509 Ticket Control 00 Appelez-nous -
009 WP22001555 Fuse   (Replaces: 202713) 00 In-Stock Immediately $ 27.33

010 203140 Contact Ball Kit 00 In-Stock Immediately $ 25.88

011 NLA Fuse Block W/fuse 00 Appelez-nous -
012 NLA Major Wire Harness 00 Appelez-nous -
013 NLA Lamp Socket W/bracket 00 Appelez-nous -
014 NLA Harness, Ticket Control 00 Appelez-nous -
015 NLA Ticket Receiver Assembly 00 Appelez-nous -
016 NLA Double Melt Clip W/deflector 00 Appelez-nous -
017 WP90767 Screw   (Replaces: 211294) 00 In-Stock Immediately $ 7.04

018 NLA Overlay, Circuit Board 00 Appelez-nous -
019 212452 Circuit Board 00 Appelez-nous -
020 NLA Sems Screw (no.4-40 X 1/2 Inc) 00 Appelez-nous -
021 WP488234 Screw, No.8-32 X 1/4 Inch   (Replaces: 212519) 00 Special Order $ 6.07

022 NLA Screw, Micro Switch 00 Appelez-nous -
023 212533 Shield, Heat Lamp 00 Special Order $ 11.78

024 NLA Screw, Shield (control) 00 Appelez-nous -
025 NLA Roller, Cam 00 Appelez-nous -
026 NLA Gasket Under Control Center 00 Appelez-nous -
027 NLA Front Plate, Ticket Control 00 Appelez-nous -
028 NLA Bracket, Ticket Assembly 00 Appelez-nous -
029 NLA Ticket Deflector 00 Appelez-nous -
030 NLA Screw (no.6 X 1/4 Inch) 00 Appelez-nous -
031 NLA Shield 00 Appelez-nous -
032 311612 Cover, Circuit Board 00 Appelez-nous -
033 311613 Screw - Circuit Board Cover 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

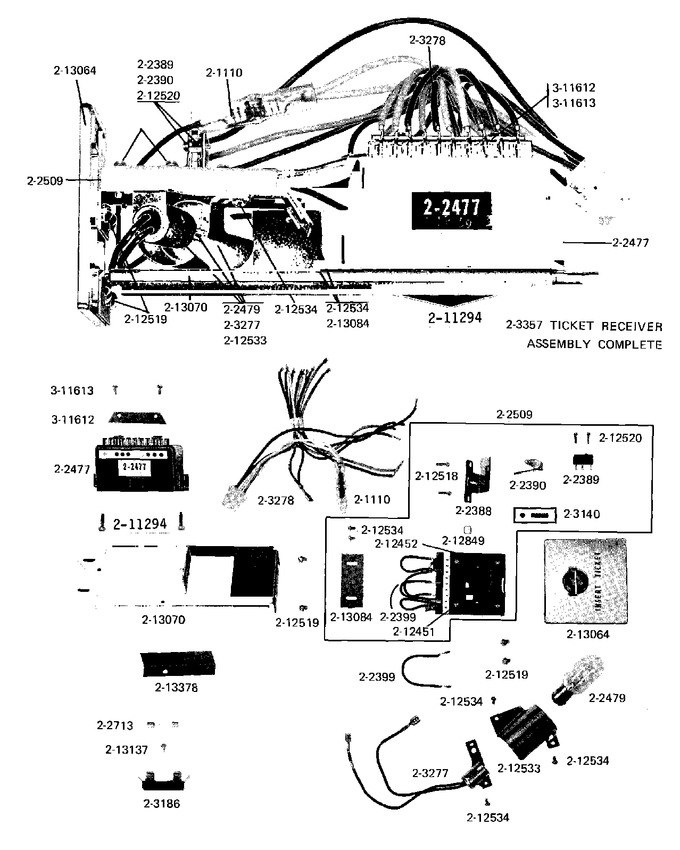

Diagram for A16CT
