SELECT A DIAGRAM

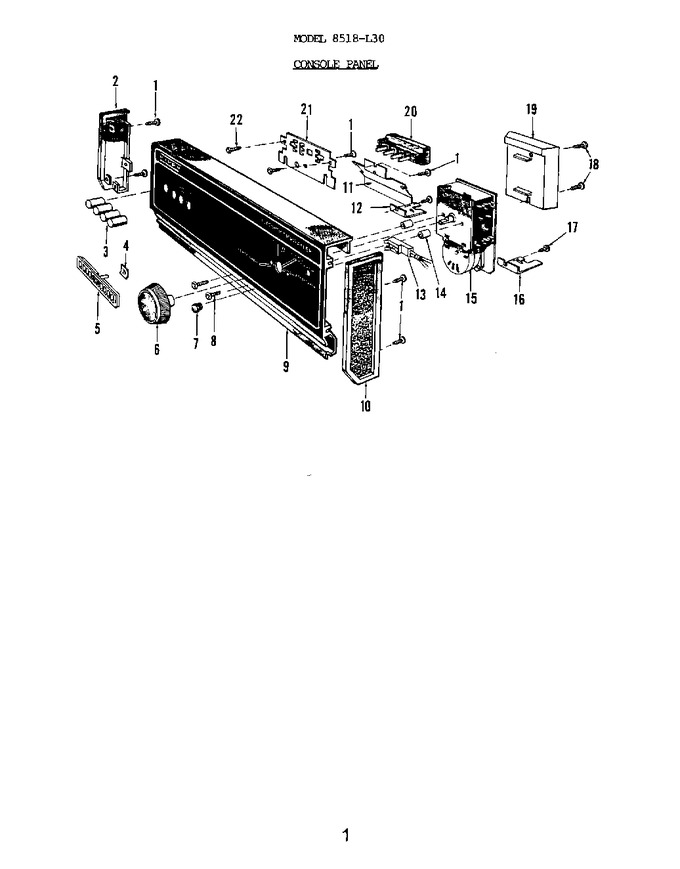

01 - Console Panel


02 - Door


03 - Tub


04 - Motor, Heater And Spray Arm


05 - Rack


06 - Frame


07 - Detergent Cup


08 - Detergent Cup


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw No.8x7/16`` Lg. C.r. Pan Ext.washer Hd.cad.pl.		Appelez-nous	-
2	806407		End Cap L.h.		Appelez-nous	-
3	807091		Switch Button		Appelez-nous	-
4	808475		Speednut		Appelez-nous	-
5	808477		Vent Grille		Appelez-nous	-
6	807094		Timer Knob		Appelez-nous	-
7	805664		Lens-red		Appelez-nous	-
8	805324		Screw No.10-32x27/32`` Lg. C.r. Truss Hd.cad.pl.		Appelez-nous	-
9	808701		Console Panel		Appelez-nous	-
10	806406		End Cap R.h.		Appelez-nous	-
11	808574		Shield - Vent Slot		Appelez-nous	-
12	808293		Timer Guard L.h.		Appelez-nous	-
13	805866		Light Assembly-pilot		Appelez-nous	-
14	805523		Spacer-timer		Appelez-nous	-
15	700462		Timer   (Replaces: 808549)			Immediately	$ 13.02
16	808292		Guard-timer R.h.		Appelez-nous	-
17	W11233072		Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
18	806894		Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St.		Appelez-nous	-
19	807425		Splash Pan		Appelez-nous	-
20	808401		Switch		Appelez-nous	-
21	806594		Bracket-switch		Appelez-nous	-
22	807141		Screw No.6x3/8``lg. Pan Hd. Cad. Pl.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
