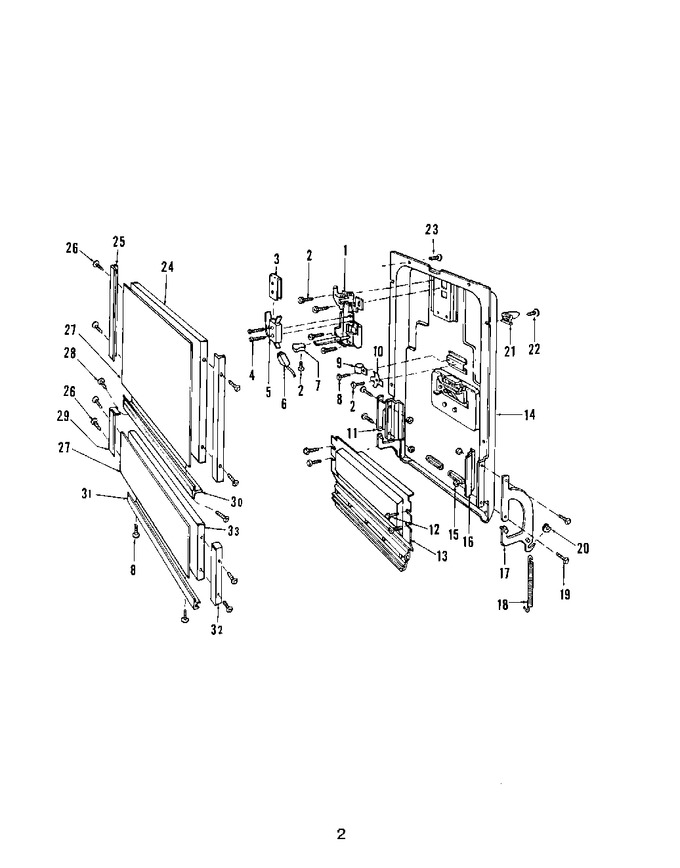

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807016		Latch Assembly		Appelez-nous	-
2	806830		Screw No.8-32x5/16``lg. C.r. Hex Hd. Cad. Pl.		Appelez-nous	-
3	807450		Cover - Switch		Appelez-nous	-
4	808618		Screw No.6-32x1``lg. Hex Hd. Cad. Pl.		Appelez-nous	-
5	807043		Switch		Appelez-nous	-
6	806846		Terminal - Insulator		Appelez-nous	-
7	806398		Latch Knob		Appelez-nous	-
8	W11233072		Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
9	808442		Clamp		Appelez-nous	-
10	807213		Terminal-grounding		Appelez-nous	-
11	807539		Counterbalance Arm Assembly - L.h.		Appelez-nous	-
12	806810		Screw No.8x3/8``lg C.r. Round Hd. St. St.		Appelez-nous	-
13	808370		Vent Plate		Appelez-nous	-
14	808578		Porcelain Weld Assembly-door		Appelez-nous	-
15	M0282009		Nut   (Replaces: 808470)				$ 12.06
16	COMM PART		Counterbalance Arm Mounting Bracket   (Replaces: 806717)		Appelez-nous	-
17	807538		Counterbalance Arm R.h.		Appelez-nous	-
18	807534		Door Spring		Appelez-nous	-
19	803311		Screw No.10-24x5/8``lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
20	805884		Spring Pad		Appelez-nous	-
21	807537		Guide - Door		Appelez-nous	-
22	806976		Screw No.8x7/16``lg. C.r. Truss Hd. St. St.		Appelez-nous	-
23	806894		Screw No.8bx5/16`` Lg.c.r. Truss Hd. St. St.		Appelez-nous	-
24	COMM PART		Door Panel Assembly   (Replaces: 808298)		Appelez-nous	-
25	808106		Trim - Door Side		Appelez-nous	-
26	WP74004005		Screw No.6ax1/4``lg. C.r. Truss Hd. Chrome Pl.   (Replaces: 807293)				$ 6.95
27	COMM PART		Door Panel Insert (almond & G. Wheat) & Access Insert Screw   (Replaces: 808299)		Appelez-nous	-
28	807501		Screw		Appelez-nous	-
29	808104		Trim-access Panel L.h. Side		Appelez-nous	-
30	808323		Door Trim-bottom		Appelez-nous	-
31	808303		Trim Access Bottom		Appelez-nous	-
32	808103		Trim - Access Panel R.h. Side		Appelez-nous	-
33	808304		Access Panel Assembly		Appelez-nous	-
