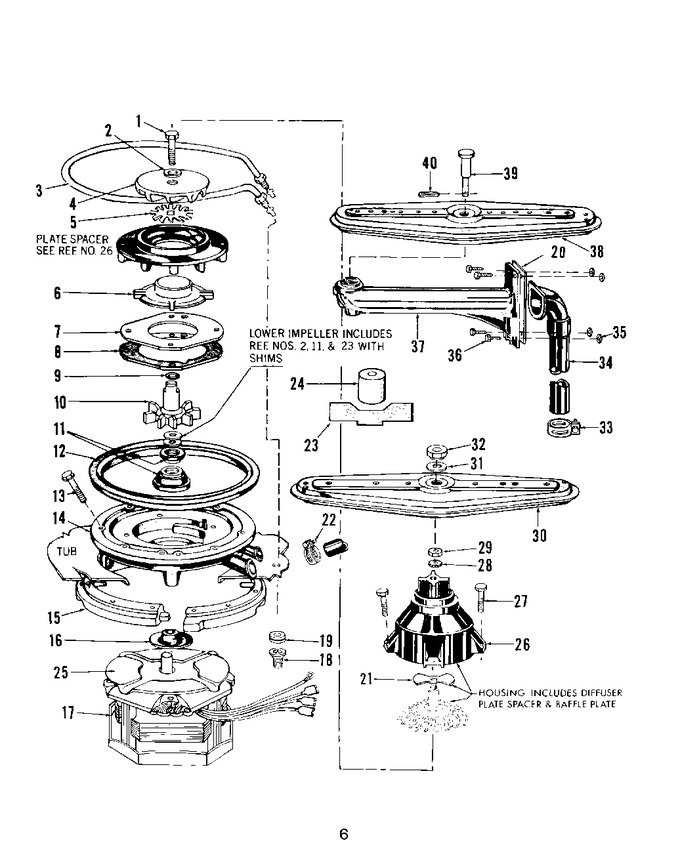

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806353		Screw No.10-32x2``lg. Hex Hd. St. St.		Appelez-nous	-
2	803367		Washer		Appelez-nous	-
3	806836		Heater		Appelez-nous	-
4	808041		Impeller - Upper		Appelez-nous	-
5	808075		Blade - Macerator		Appelez-nous	-
6	806267		Shroud - Impeller		Appelez-nous	-
7	807884		Plate - Pump		Appelez-nous	-
8	5300807709		Gasket - Pump   (Replaces: 807709)				$ 54.26
9	806521		``o`` Ring		Appelez-nous	-
10	5300808042		Impeller-lower Kit   (Replaces: 808042)		Appelez-nous	-
11	803903		Seal		Appelez-nous	-
12	807710		Gasket-pump		Appelez-nous	-
13	807268		Screw No.10-type30x1``lg. Hex Washer Hd. St. St.,		Appelez-nous	-
14	807711		Pump Housing		Appelez-nous	-
15	807712		Clamp Ring (includes Both Halves)		Appelez-nous	-
16	808561		Slinger		Appelez-nous	-
17	806300		Motor (includes Slinger, 3 Brass Shims, 4 Motor Attach Bolts, 1-2 1/4`` Lg.impeller Bolt, Motor, Sha		Appelez-nous	-
18	154106202		Nut 1/2`` 20 Brass   (Replaces: 806834)			Immediately	$ 18.32
19	5300806833		Grommet - Heater   (Replaces: 806833)				$ 5.34
20	808014		Gasket - Delivery Arm		Appelez-nous	-
21	808380		Baffle Plate		Appelez-nous	-
22	806090		Clamp		Appelez-nous	-
23	807077		Gage - Seal Shim		Appelez-nous	-
24	803923		Seal Installation Tool		Appelez-nous	-
25	808435		Water Shield		Appelez-nous	-
26	806978		Pump Housing (includes Diffuser & Plate Spacer)		Appelez-nous	-
27	807359		Screw No.10-30ax3/4``lg. Hex Hd. St. St.		Appelez-nous	-
28	COMM PART		Lockwasher No.10 External Teeth   (Replaces: 804526)		Appelez-nous	-
29	316205500		Nut   (Replaces: 804527)				$ 11.34
30	807589		Spray Arm Assembly - Lower		Appelez-nous	-
31	COMM PART		Washer-spray Arm   (Replaces: 807590)		Appelez-nous	-
32	804473		Nut		Appelez-nous	-
33	805495		Clamp		Appelez-nous	-
34	807592		Elbow & Tube Assembly		Appelez-nous	-
35	808210		``o`` Ring				$ 0.42
36	WP67006908		Screw No.8x5/8``lg. Hex Washer Hd. Cad. Pl.   (Replaces: 805106)			Immediately	$ 7.16
37	807591		Spray Arm Assembly		Appelez-nous	-
38	807593		Spray Arm Assembly - Upper		Appelez-nous	-
39	807598		Spindle - Spray Arm		Appelez-nous	-
40	807386		Cotter Pin				$ 1.10
