SELECT A DIAGRAM

01 - Console Panel


02 - Door


03 - Tub


04 - Motor, Heater And Spray Arm


05 - Rack


06 - Frame


07 - Detergent Cup


08 - Detergent Cup

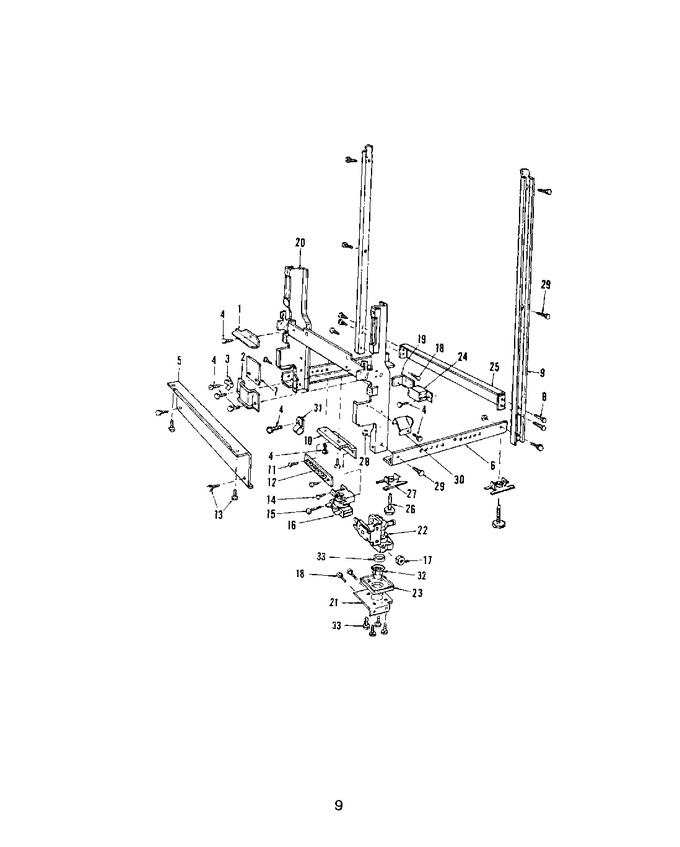

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807558		Suds Deflector		Appelez-nous	-
2	806723		Clamp - Wiring		Appelez-nous	-
3	807213		Terminal-grounding		Appelez-nous	-
4	806830		Screw No.8x32x5/16``lg. C.r.hex Hd. Cad. Pl.		Appelez-nous	-
5	807559		Toeplate		Appelez-nous	-
6	807564		Angle Base		Appelez-nous	-
7	COMM PART		Wire Shield   (Replaces: 808013)		Appelez-nous	-
8	807501		Screw		Appelez-nous	-
9	806290		Channel-side		Appelez-nous	-
10	807675		Bracket-terminal		Appelez-nous	-
11	807501		Screw No.8 Type ``a``x1/2`` Lg. C.r.truss Hd. Chrome Pl.		Appelez-nous	-
12	807175		Block Assembly-terminal		Appelez-nous	-
13	807001		Screw 1/4-20x1/2`` Lg.hex Washer Slotted Hd.cad.		Appelez-nous	-
14	WP488234		Screw No.8x32x1/4``lg. C.r. Pan Cad. Pl.   (Replaces: 806593)				$ 6.07
15	804672		Screw No.8-32x1-1/4``lg. C.r. Fillister Hd. Cad.pl.		Appelez-nous	-
16	806121		Relay		Appelez-nous	-
17	808469		Flow Washer		Appelez-nous	-
18	804518		Screw No.10 Type Zx1/2``lg. Slotted Hex Hd. Cad. Pl.		Appelez-nous	-
19	807019		Junction Box Bracket		Appelez-nous	-
20	807674		Hinge Weld Assembly		Appelez-nous	-
21	807613		Mounting Bracket		Appelez-nous	-
22	808468		Valve Assembly - Inlet		Appelez-nous	-
23	808458		Fitting - Retainer		Appelez-nous	-
24	800222		Junction Box Cover		Appelez-nous	-
25	807566		Rear Brace		Appelez-nous	-
26	807672		Levelers		Appelez-nous	-
27	807671		Teenut - Snap- In		Appelez-nous	-
28	M0282005		Nut   (Replaces: 804619)				$ 7.07
29	806889		Screw 1/4-20x1/2`` Lg Hex Washer Hd. Cad. Pl.		Appelez-nous	-
30	807563		Suds Deflector R.h.		Appelez-nous	-
31	808442		Clamp-wire		Appelez-nous	-
32	808337		Fitting - Inlet		Appelez-nous	-
33	806100		Gasket		Appelez-nous	-
34	808368		Screw No.8-type``b``x5/8``lg. Hex Hd. Cad. Pl.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
