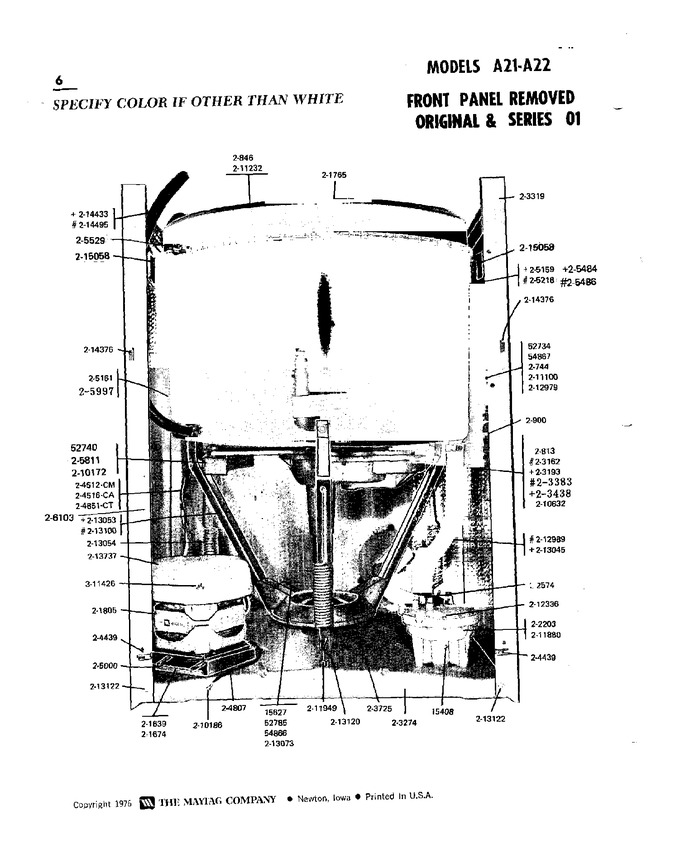

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 01 |
|
$ 6.85 | ||||
| 002 | WP3390631 | Screw, Bearing Insert (Replaces: Y015408) | 01 |
|
$ 7.04 | ||||
| 003 | Y015627 | Screw, Hex Hd Cap 5/16 X 5/8 | 01 |
|
$ 8.15 | ||||
| 004 | Y052734 | Nut, Brace (tub) | 01 |
|
- | ||||
| 005 | Y052785 | Nut, Brace (damper) | 01 |
|
- | ||||
| 006 | NLA | Cap Screw (3/8-16 X 1) | 01 |
|
- | ||||
| 007 | Y054866 | Lock Washer | 01 |
|
- | ||||
| 008 | Y054867 | Washer, Lock | 01 |
|
- | ||||
| 009 | W10175939 | Bolt & Gasket Assembly (short) (Replaces: 200744) | 01 |
|
$ 7.79 | ||||
| 010 | NLA | Gear Case Cover Assembly | 01 |
|
- | ||||
| 011 | 200846 | Clamp - Tub Cover | 01 |
|
$ 62.11 | ||||
| 012 | WP616099 | Clamp, Spray Arm Hose (Replaces: 200900) | 01 |
|
Immediately | $ 7.03 | |||
| 013 | 201639 | Motor Mount (upr) | 01 |
|
- | ||||
| 014 | COMM PART | Motor Mount (lwr) (Replaces: 201674) | 01 |
|
- | ||||
| 015 | 201765 | Tub Cover | 01 |
|
- | ||||
| 016 | 12002351 | Motor (one Speed) (Replaces: 201805) | 01 |
|
Immediately | $ 170.98 | |||
| 017 | 202203 | Pump As Pak | 01 |
|
- | ||||
| 018 | WP3367052 | Clamp, Hose (Replaces: 202574) | 01 |
|
$ 7.49 | ||||
| 019 | Y202734 | Bumper | 01 |
|
- | ||||
| 020 | NLA | Gear Housing W/studs & Tube | 01 |
|
- | ||||
| 021 | 203193 | Part Not Used |
|
- | |||||
| 021 | NLA | Gear Housing W/studs & Tube | 01 |
|
- | ||||
| 022 | 203274 | Base W/damper Pads | 01 |
|
- | ||||
| 023 | NLA | Cabinet (wht) | 01 |
|
- | ||||
| 024 | 203438 | Transmission & Center Assy. Part Not Used | 01 |
|
- | ||||
| 025 | 1N4004 | Damper W/bolt & Clip (Replaces: 203725) | 01 |
|
- | ||||
| 026 | 203383 | Transmission & Center Assy. | 01 |
|
- | ||||
| 027 | 204439 | Screw & Fastner Assembly | 01 |
|
$ 8.80 | ||||
| 028 | NLA | Wire Harness, Main | 01 |
|
- | ||||
| 029 | NLA | Wire Harness, Main | 01 |
|
- | ||||
| 030 | 205484 | Tub, Outer Part Not Used | 01 |
|
- | ||||
| 031 | 205486 | Tub, Outer | 01 |
|
- | ||||
| 032 | 206103 | Capacitor Kit | 01 |
|
$ 55.71 | ||||
| 033 | 205997 | Non-bleach Conversion Kit | 01 |
|
- | ||||
| 034 | 205529 | Tub Clamp Nut & Bolt Kit | 01 |
|
$ 6.58 | ||||
| 035 | NLA | Counterweight | 01 |
|
- | ||||
| 036 | 204807 | Ground Wire, Support Plate | 01 |
|
- | ||||
| 037 | NLA | Wire Harness, Main | 01 |
|
- | ||||
| 038 | 205000 | Glide & Spring Kit | 01 |
|
$ 62.00 | ||||
| 039 | 205159 | Tub, Outer Part Not Used | 01 |
|
- | ||||
| 040 | WP489503 | Clamp, Bleach Hose (tub) (Replaces: 205161) | 01 |
|
Immediately | $ 9.68 | |||
| 041 | 205218 | Outer Tub Assembly | 01 |
|
- | ||||
| 042 | NLA | Lock Washer | 01 |
|
- | ||||
| 043 | WP489128 | Screw, Ground Wire (Replaces: 210186) | 01 |
|
$ 9.79 | ||||
| 044 | 210632 | Gasket | 01 |
|
- | ||||
| 045 | NLA | Counterweight | 01 |
|
- | ||||
| 046 | 211100 | Washer, Cushion | 01 |
|
- | ||||
| 047 | WP211232 | Seal (Replaces: 211232) | 01 |
|
$ 62.96 | ||||
| 048 | WPY014874 | Screw (hex Hd No.10 X 1/2``) (Replaces: 211880) | 01 |
|
$ 6.98 | ||||
| 049 | WP211949 | Nut, Eyebolt (Replaces: 211949) | 01 |
|
$ 6.88 | ||||
| 050 | NLA | Screw (no.8 X 3/4``) | 01 |
|
- | ||||
| 051 | 212979 | Washer, Tub Brace | 01 |
|
$ 91.61 | ||||
| 052 | WPY212989 | Hose, Outer Tub (pump) (Replaces: Y212989) | 01 |
|
Immediately | $ 46.51 | |||
| 053 | WP213045 | Hose, Outer Tub (pump) Part Not Used (Replaces: 213045) | 01 |
|
Immediately | $ 43.57 | |||
| 054 | 213053 | Brace, Tub Part Not Used | 01 |
|
- | ||||
| 055 | 213054 | Spring, Centering | 01 |
|
- | ||||
| 056 | 213073 | Washer, Double | 01 |
|
- | ||||
| 057 | 213100 | Brace, Tub | 01 |
|
- | ||||
| 058 | W11129403 | Eye Bolt, Center Spring (Replaces: 213120) | 01 |
|
$ 12.23 | ||||
| 059 | WP27001200 | Screw, Cabinet (Replaces: 213122) | 01 |
|
$ 6.91 | ||||
| 060 | 213737 | Shield, Motor (poly) | 01 |
|
- | ||||
| 061 | 214376 | Spacer, Front Panel | 01 |
|
- | ||||
| 062 | WP214433 | Tube, Inlet (tub) Part Not Used (Replaces: 214433) | 01 |
|
Immediately | $ 28.17 | |||
| 063 | 214495 | Tube, Inlet (tub) | 01 |
|
$ 30.61 | ||||
| 064 | WP3400029 | Keps Nut, Motor Base (Replaces: Y311426) | 01 |
|
Immediately | $ 6.98 |
