SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Front Panel Removed


04 - Top Cover Up


05 - Control Panel


06 - Cm Control Center


07 - Motor Mount, Base Frame & Centering Sprs


08 - Power Unit & Center Assembly


09 - `poly` Pump


10 - Brake & Clutch Assembly

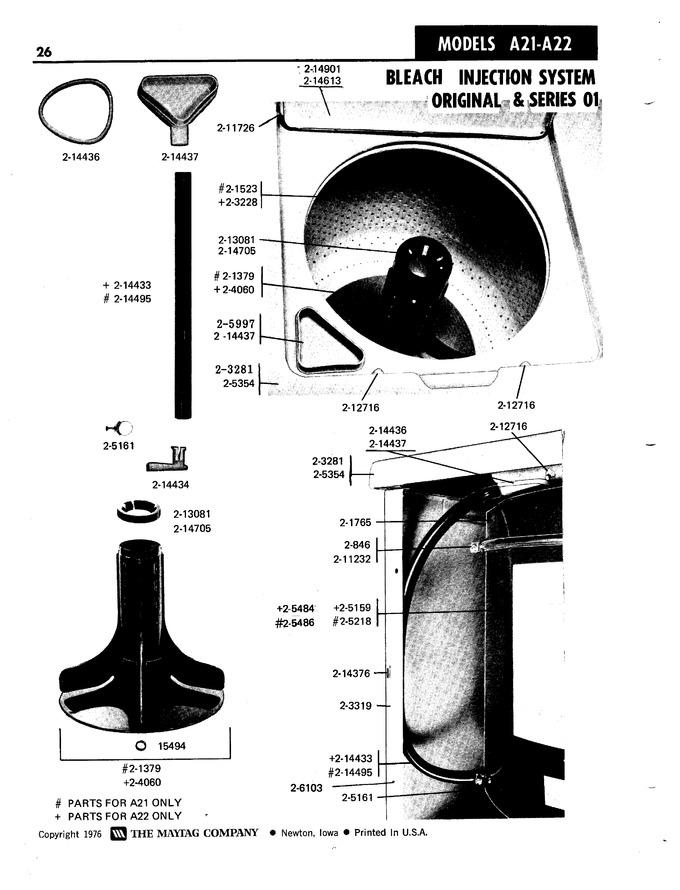

11 - Bleach Injection System


12 - Water Injection System, Hoses & Clamps


13 - 230 Volt, 50 Cycle Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y015494		Stop Ring-agitator Shaft		Appelez-nous	-
002	200846		Clamp - Tub Cover				$ 62.11
003	201379		Agitator (blk)		Appelez-nous	-
004	NLA		Tub, Inner		Appelez-nous	-
005	201765		Cover, Tub		Appelez-nous	-
006	NLA		Cabinet (wht)		Appelez-nous	-
007	WP489503		Clamp, Bleach Hose   (Replaces: 205161)			Immediately	$ 9.68
008	205218		Outer Tub Assembly		Appelez-nous	-
009	NLA		Cover, Top (wht)		Appelez-nous	-
010	WP211232		Seal   (Replaces: 211232)				$ 62.96
014	WP211726		Hinge, Ball   (Replaces: 211726)			Immediately	$ 7.18
015	WP212716		Bumper, Lid   (Replaces: 212716)			Immediately	$ 7.88
016	213081		Cap, Dispenser (blk)		Appelez-nous	-
017	214376		Spacer, Front Panel		Appelez-nous	-
019	214434		Spout, Deflector				$ 43.09
020	214436		Gasket		Appelez-nous	-
021	214437		Inlet, Bleach		Appelez-nous	-
022	214493		Plastic Rivet		Appelez-nous	-
023	214495		Tube, Inlet				$ 30.61
024	NLA		Lid (wht)		Appelez-nous	-
025	214705		Cap, Capacitor		Appelez-nous	-
027	205486		Tub, Outer		Appelez-nous	-
028	214901		Lid (wht)		Appelez-nous	-
029	206103		Capacitor Kit				$ 55.71
030	205997		Non-bleach Conversion Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
