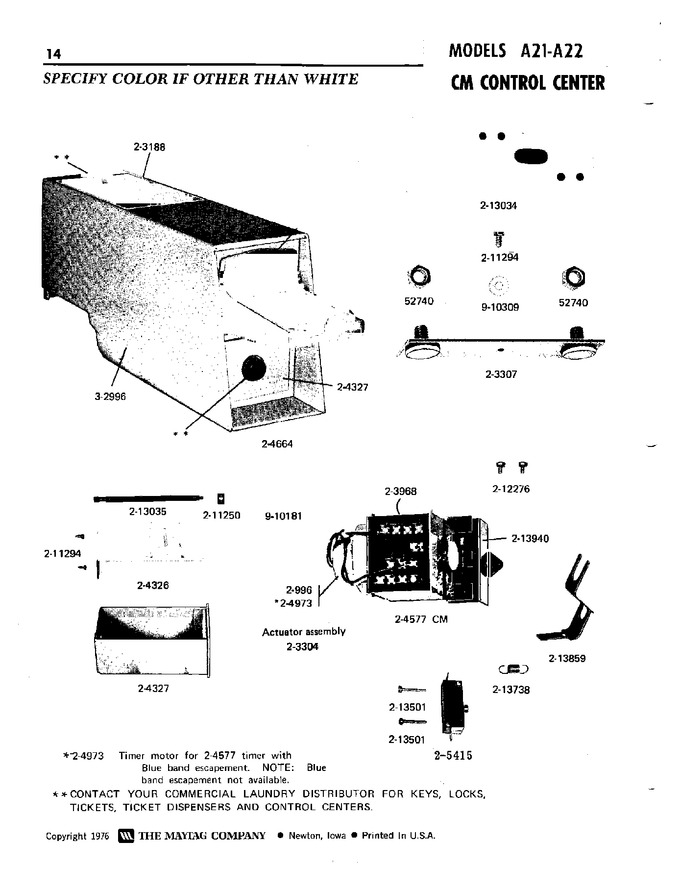

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | NLA | Motor, Timer | 00 |
|
- | ||||
| 003 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 004 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 005 | NLA | Washer Slides Actuator Kit | 00 |
|
- | ||||
| 006 | NLA | Strap, Mounting | 00 |
|
- | ||||
| 007 | 203761 | Door, Access (wht) | 00 |
|
- | ||||
| 008 | 203761 | Door, Access (wht) | 00 |
|
- | ||||
| 009 | NLA | Switch Harness, Timer | 00 |
|
- | ||||
| 010 | NLA | Latch, Anti-inertia | 00 |
|
- | ||||
| 011 | NLA | Relay (240-50) | 00 |
|
- | ||||
| 012 | NLA | Box, Coin (wht) | 00 |
|
- | ||||
| 013 | NLA | Wire Harness, Main | 00 |
|
- | ||||
| 014 | 204577CP | Timer (w/knob & Pin) (Replaces: 204577) | 00 |
|
- | ||||
| 015 | NLA | Center, Control (wht) | 00 |
|
- | ||||
| 016 | 204973 | Motor, Timer | 00 |
|
- | ||||
| 017 | NLA | Counter Kit W/actuator | 00 |
|
- | ||||
| 018 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 019 | NLA | Fastener | 00 |
|
- | ||||
| 020 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 021 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 022 | NLA | Gasket, Control Center | 00 |
|
- | ||||
| 023 | 213035 | Bolt, Locking | 00 |
|
$ 5.84 | ||||
| 024 | 213501 | Screw (no.6-20 X 1-1/8``) | 00 |
|
$ 12.03 | ||||
| 025 | NLA | Spring Washer, Lock | 00 |
|
- | ||||
| 026 | 212951 | Screw (no.6-32 X 1/4``) | 00 |
|
- | ||||
| 027 | NLA | Return Spring, Tension Lever | 00 |
|
- | ||||
| 028 | NLA | Lever Arm, Switch | 00 |
|
- | ||||
| 029 | NLA | Mounting Bracket, Timer | 00 |
|
- | ||||
| 030 | NLA | Case, Outer (wht) | 00 |
|
- | ||||
| 031 | NLA | Screw, Retainer | 00 |
|
- | ||||
| 032 | 910181 | Lock Washer | 00 |
|
- |
