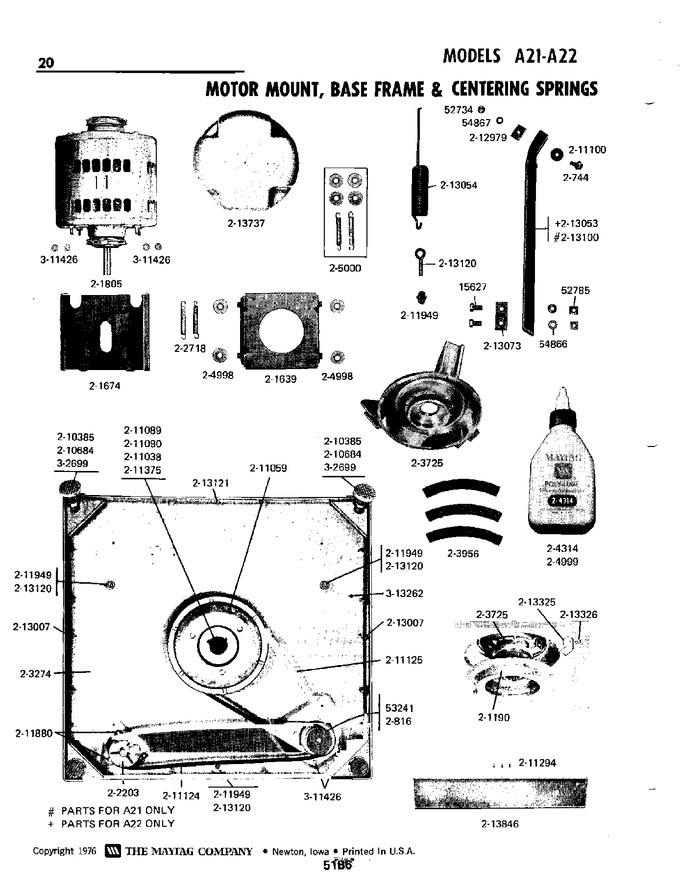

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y015627 | Screw, Hex Hd Cap 5/16 X 5/8 |
|
$ 8.15 | |||||
| 002 | Y052734 | Nut, Brace (tub) |
|
- | |||||
| 003 | Y052785 | Nut, Brace (damper) |
|
- | |||||
| 004 | Y053241 | Set Screw, Pulley |
|
- | |||||
| 005 | Y054866 | Lock Washer |
|
- | |||||
| 006 | Y054867 | Washer, Lock |
|
- | |||||
| 007 | W10175939 | Bolt & Gasket Assembly (short) (Replaces: 200744) |
|
$ 7.79 | |||||
| 008 | 200816 | Pulley, Motor (w/set Screw) |
|
- | |||||
| 009 | 201190 | Package, Brake |
|
- | |||||
| 010 | 201639 | Motor Mount (upr) |
|
- | |||||
| 011 | COMM PART | Motor Mount (lwr) (Replaces: 201674) |
|
- | |||||
| 012 | 12002351 | Motor (one Speed) (Replaces: 201805) |
|
Immediately | $ 170.98 | ||||
| 013 | 202203 | Pump As Pak |
|
- | |||||
| 014 | 202718 | Springs, Tension |
|
Immediately | $ 200.35 | ||||
| 015 | 203274 | Base W/damper Pads |
|
- | |||||
| 016 | 1N4004 | Damper W/bolt & Clip (Replaces: 203725) |
|
- | |||||
| 017 | 203956 | Damper Pad Kit (w/poly Lube) |
|
Immediately | $ 47.33 | ||||
| 018 | WP99003172 | Poly Lube - 4 Oz (Replaces: 204314) |
|
$ 15.00 | |||||
| 019 | 204590 | Cord, Power |
|
$ 61.20 | |||||
| 020 | 205000 | Glide Kit (4 W/poly Lube) (Replaces: Y204998) |
|
$ 62.00 | |||||
| 021 | WP99003172 | Poly-lube Grease, 3.5 Grams (Replaces: 204999) |
|
$ 15.00 | |||||
| 022 | 205000 | Glide & Spring Kit |
|
$ 62.00 | |||||
| 023 | WP210385 | Nut, Lock (Replaces: 210385) |
|
$ 6.26 | |||||
| 024 | WP210684 | Foot, Rubber (Replaces: 210684) |
|
Immediately | $ 14.09 | ||||
| 025 | NLA | Cap, Oil Retainer |
|
- | |||||
| 026 | 211043 | Drum, Brake |
|
- | |||||
| 027 | 211045 | Housing, Brake |
|
- | |||||
| 028 | WP6-2301530 | Pulley, Drive (Replaces: 211059) |
|
$ 178.73 | |||||
| 029 | WP211089 | Lug, Stop (Replaces: 211089) |
|
$ 10.16 | |||||
| 030 | WP22003555 | Washer, Lock (Replaces: 211090) |
|
$ 19.26 | |||||
| 031 | 211100 | Washer, Cushion |
|
- | |||||
| 032 | 12112425 | V Belt, Pump (Replaces: 211124) |
|
Immediately | $ 45.06 | ||||
| 033 | 12112425 | V Belt,drive Pulley (Replaces: 211125) |
|
Immediately | $ 45.06 | ||||
| 034 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 035 | WP912618 | Screw, Stop Lug (Replaces: 211375) |
|
$ 6.98 | |||||
| 036 | WPY014874 | Screw (hex Hd No.10 X 1/2``) (Replaces: 211880) |
|
$ 6.98 | |||||
| 037 | WP211949 | Nut, Eyebolt (Replaces: 211949) |
|
$ 6.88 | |||||
| 038 | 212979 | Washer, Tub Brace |
|
$ 91.61 | |||||
| 039 | 213007 | Screw, Cabinet |
|
$ 10.99 | |||||
| 041 | 213054 | Spring, Centering |
|
- | |||||
| 042 | 213073 | Washer, Double |
|
- | |||||
| 043 | 213100 | Brace, Tub |
|
- | |||||
| 044 | W11129403 | Eye Bolt, Center Spring (Replaces: 213120) |
|
$ 12.23 | |||||
| 045 | WPW10346892 | Screw (Replaces: 213121) |
|
Immediately | $ 6.47 | ||||
| 046 | 213325 | Retainer Clip, Damper |
|
$ 5.51 | |||||
| 047 | 213326 | Bolt, Retaining Clip |
|
- | |||||
| 048 | 213737 | Shield, Motor (poly) |
|
- | |||||
| 049 | 213846 | Guard, Belt |
|
- | |||||
| 050 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) |
|
Immediately | $ 14.41 | ||||
| 051 | WP3400029 | Keps Nut, Motor Base (Replaces: Y311426) |
|
Immediately | $ 6.98 | ||||
| 052 | Y313262 | Retainer, Wire Harness |
|
- |
