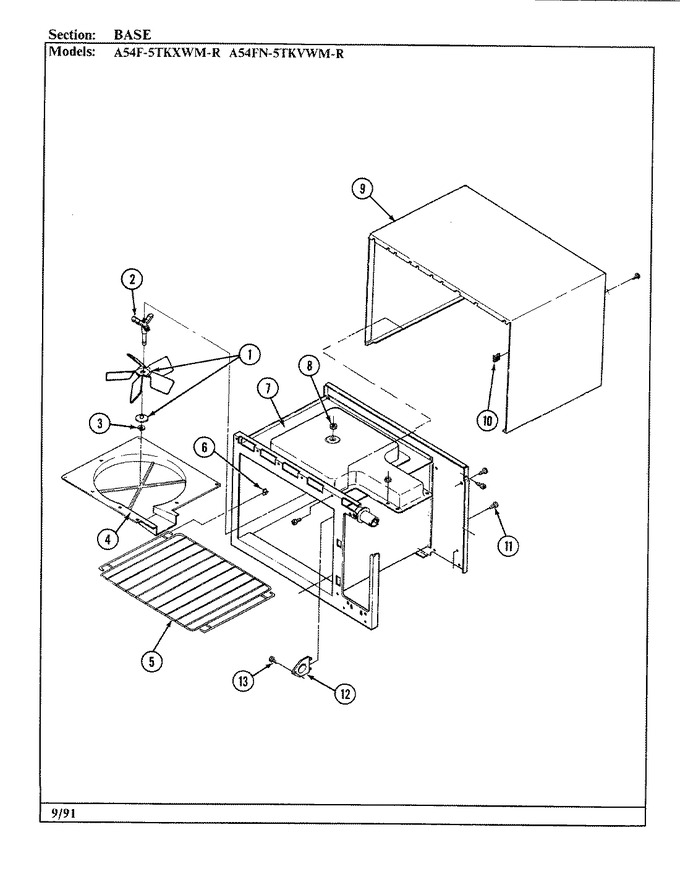

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04021190 | Blade, Bushing Assembly | 1 |
|
- | ||||
| 2 | 02360058 | Shaft, Stirrer | 1 |
|
- | ||||
| 3 | Y03110055 | Clip, Stirrer | 1 |
|
- | ||||
| 4 | Y02300045 | Cover, Stirrer | 1 |
|
- | ||||
| 5 | Y02410004 | Rack, Oven | 1 |
|
- | ||||
| 7 | 04021491 | Cavity | 1 |
|
- | ||||
| 8 | 03050007 | Nut, Shaft Stirrer | 1 |
|
- | ||||
| 9 | 02140079 | Cabinet | 1 |
|
- | ||||
| 10 | 03110046 | Clip, Cabinet (lt) | 1 |
|
- | ||||
| 10 | 03110027 | Clip, Cabinet (rt) | 1 |
|
- | ||||
| 11 | WP8281227 | Screw (Replaces: Y03010144) | 1 |
|
$ 9.40 | ||||
| 12 | Y02400007 | Lens, Bulb | 1 |
|
- | ||||
| 13 | 03010138 | Screw | 1 |
|
- | ||||
| 13 | Y03110050 | Clip | 1 |
|
- |
