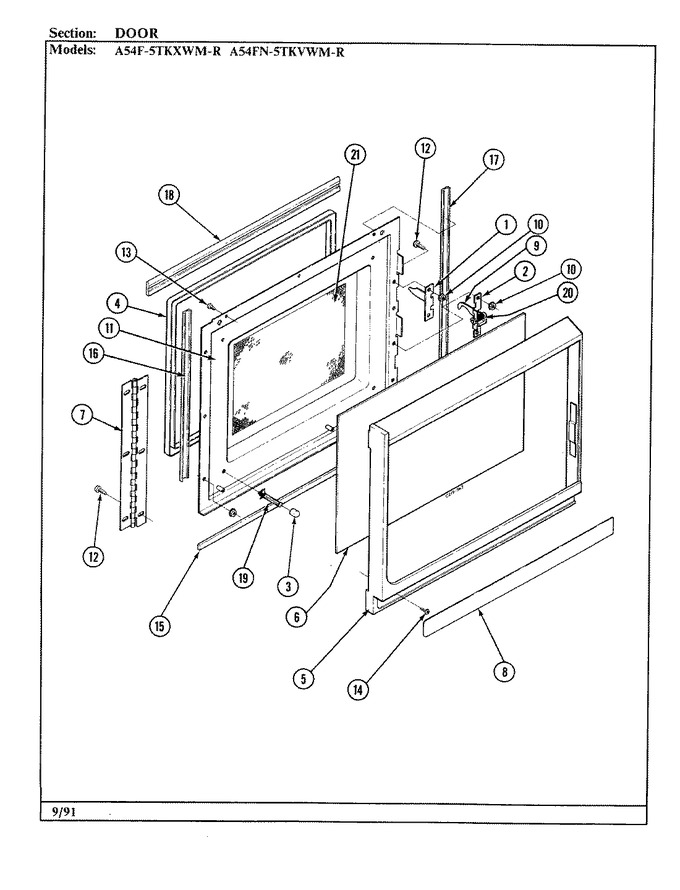

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base
02 - Body
03 - Control Panel
04 - Control System
05 - Door
06 - Interlock Switches
07 - Internal Controls
08 - Internal Controls
09 - Oven
10 - Turntable
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y02030117 | Activator, Monitor | 1 |
|
- | ||||
| 2 | Y02030116 | Bracket, Door Latch | 1 |
|
- | ||||
| 3 | Y02100135 | Bumper | 1 |
|
- | ||||
| 4 | Y02100166 | Choke, Filler (blk) | 1 |
|
- | ||||
| 4 | Y02100080 | Choke, Filler (wht) | 1 |
|
- | ||||
| 5 | 02100246 | Panel, Door (white) | 1 |
|
- | ||||
| 6 | 02120166 | Extrusion, Handle (wht) | 1 |
|
- | ||||
| 6 | 02220112 | Glass, Outer Door | 1 |
|
- | ||||
| 7 | 02200021 | Hinge | 1 |
|
- | ||||
| 8 | Y02100223 | Insert Door/control (white) | 1 |
|
- | ||||
| 9 | 02190056 | Latch, Door | 1 |
|
- | ||||
| 10 | M0282005 | Nut, Hex(must Order Locally) (Replaces: Y03050041) | 1 |
|
$ 7.07 | ||||
| 11 | 04021377 | Panel, Inner Door (blk) | 1 |
|
- | ||||
| 12 | Y03010157 | Screw, 6-32 X 3/8 Ph Black | 1 |
|
- | ||||
| 13 | Y03010118 | Screw | 1 |
|
- | ||||
| 14 | WP74004005 | Screw (Replaces: Y03010135) | 1 |
|
$ 6.95 | ||||
| 15 | 02120114 | Seal, Bottom | 1 |
|
- | ||||
| 16 | Y02120121 | Seal, Hinge Side | 1 |
|
- | ||||
| 17 | Y02120122 | Seal, Latch Side | 1 |
|
- | ||||
| 18 | 02120153 | Seal, Top | 1 |
|
- | ||||
| 18 | Y03120064 | Shim | 1 |
|
- | ||||
| 19 | Y03120069 | Spacer, Door Window | 1 |
|
- | ||||
| 20 | Y03180023 | Spring, Door Latch | 1 |
|
- | ||||
| 21 | 02100247 | Trim (white) | 1 |
|
- | ||||
| 21 | Y02240782 | Label, Cooking Guide | 1 |
|
- |
