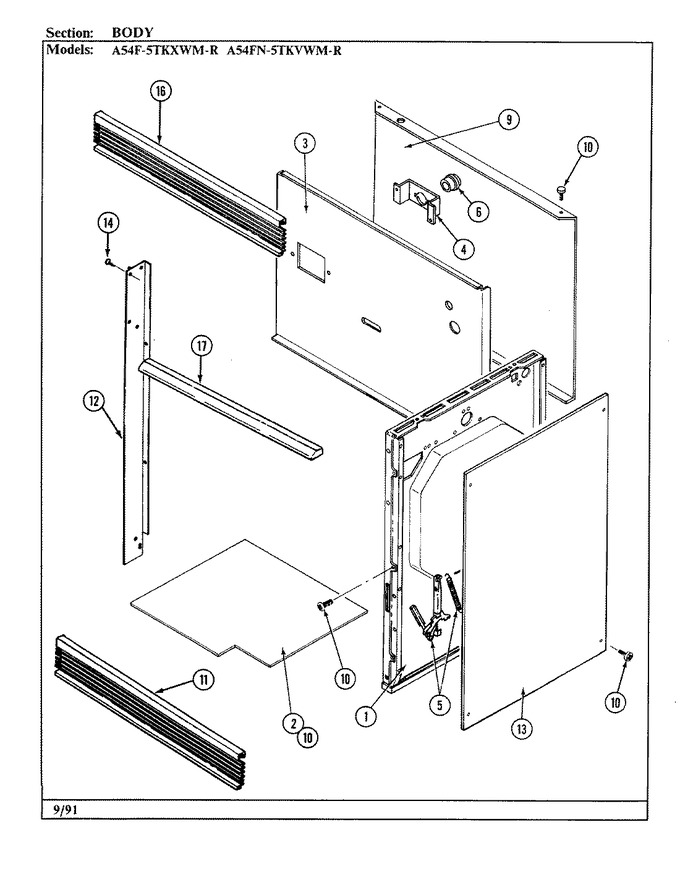

01 - Base
02 - Body
03 - Control Panel
04 - Control System
05 - Door
06 - Interlock Switches
07 - Internal Controls
08 - Internal Controls
09 - Oven
10 - Turntable
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F408-45 | Support, Catch Assy. | 1 |
|
- | ||||
| 2 | 3604F159-45 | Shield Insulation, Catch | 1 |
|
- | ||||
| 2 | 8002P021-60 | Catch, Door Lock | 1 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 4 | 3818F027-45 | Channel, Switch | 1 |
|
- | ||||
| 5 | 7003P039-60 | Insulation, Switch | 1 |
|
- | ||||
| 5 | 7403P099-60 | Switch, Ovn Lock Asy----na | 1 |
|
- | ||||
| 5 | 7003P019-60 | Insulation, Switch (upper) | 1 |
|
- | ||||
| 6 | 3807F422-45 | Support, Door Lock Switch | 1 |
|
- | ||||
| 7 | 7101P031-60 | Screw | 1 |
|
- | ||||
| 8 | 8009P009-60 | Lever, Door Lock | 1 |
|
- | ||||
| 9 | WP4159193 | Screw (Replaces: 7101P018-60) | 1 |
|
$ 4.29 | ||||
| 10 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 11 | 7116P003-60 | Bolt | 1 |
|
- | ||||
| 12 | 7701P088-60 | Handle, Latch (blk) | 1 |
|
- | ||||
| 12 | 7701P089-60 | Handle, Latch (wht) | 1 |
|
- | ||||
| 13 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 14 | 4005F137-80 | Cover, Catch Assy. | 1 |
|
- | ||||
| 15 | 7403P249-60 | Switch, Hi Limit | 1 |
|
- | ||||
| 16 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 17 | 7101P079-60 | Screw | 1 |
|
- | ||||
| 17 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 18 | 7413A002-60 | Fan, Resistor Asy | 1 |
|
- | ||||
| 19 | 3807F407-45 | Support Duct | 1 |
|
- | ||||
| 20 | 4005F359-51 | Cover Side | 1 |
|
- | ||||
| 20 | 4005F358-51 | Cover Side | 1 |
|
- | ||||
| 21 | 4005F360-51 | Cover Top | 1 |
|
- | ||||
| 22 | 3604F166-45 | Shield, Heat | 1 |
|
- | ||||
| 23 | 4006D101-45 | Duct Assy. | 1 |
|
- | ||||
| 24 | 4011F193-80 | Bottom Burner Box | 1 |
|
- | ||||
| 25 | 4001F069-45 | Housing Fan | 1 |
|
- | ||||
| 26 | 7427P010-60 | Fan Assy. | 1 |
|
- | ||||
| 27 | 8007P003-60 | Bushing, Snap | 1 |
|
- | ||||
| 27 | 7402P040-60 | Cord, Power | 1 |
|
- | ||||
| 28 | 3801F230-45 | Support Mtg Rt | 1 |
|
- | ||||
| 28 | 3801F229-45 | Support Mtg Lf | 1 |
|
- | ||||
| 29 | 4006D119-45 | Riser Duct | 1 |
|
- | ||||
| 30 | 7201P049-60 | Gasket, Flue Bottom | 1 |
|
- | ||||
| 30 | 7201P048-60 | Gasket, Flue Top | 1 |
|
- |
