View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

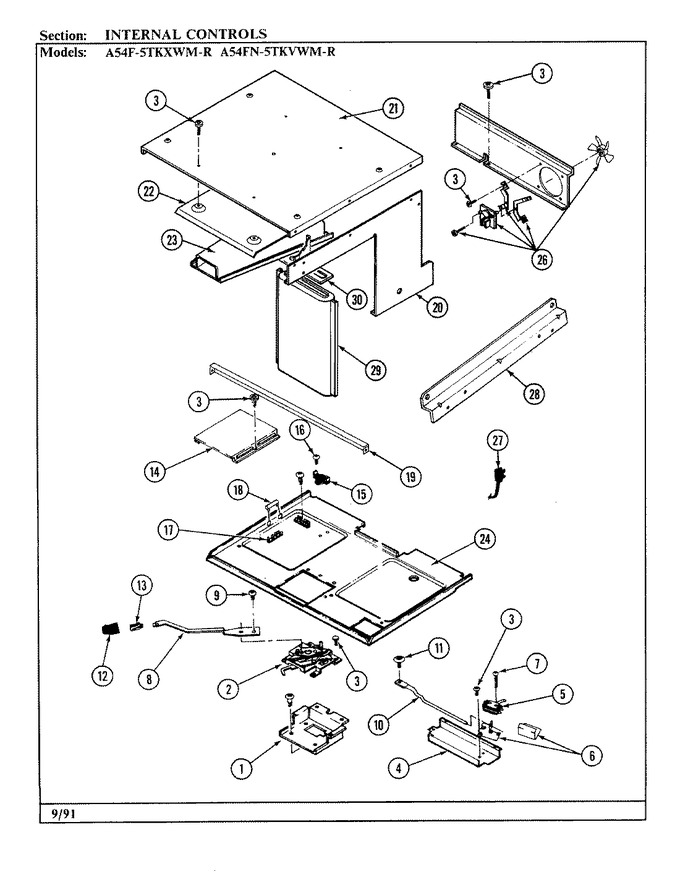

01 - Base
02 - Body
03 - Control Panel
04 - Control System
05 - Door
06 - Interlock Switches
07 - Internal Controls
08 - Internal Controls
09 - Oven
10 - Turntable
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 1 |
|
$ 12.13 | ||||
| 1 | 01210102 | Board, Control (t-clock) | 1 |
|
- | ||||
| 1 | 01210093 | Board, Control | 1 |
|
- | ||||
| 2 | 02030164 | Bracket, Control Mtg | 1 |
|
- | ||||
| 3 | 03110069 | Clip, Switch | 1 |
|
- | ||||
| 3 | Y02060353 | Switch, Control Panel | 1 |
|
- | ||||
| 3 | 74008717 | Rocker Switch (Replaces: Y01140082) | 1 |
|
$ 72.68 | ||||
| 4 | 7728P077-60 | Inlay, Trim (white) | 1 |
|
- | ||||
| 4 | Y02100245 | Control Panel (white) | 1 |
|
- | ||||
| 5 | 04010265 | Wire Assembly | 1 |
|
- | ||||
| 5 | 03020061 | Screw | 1 |
|
- | ||||
| 5 | Y03010147 | Screw (top) | 1 |
|
- | ||||
| 5 | Y02120121 | Seal, Hinge Side | 1 |
|
- | ||||
| 5 | 02100247 | Trim (white) | 1 |
|
- |
