| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
053759 |
|
Screw, No.6-32 X 3/8 |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
200863 |
|
Fluorescent Lamp |
00 |
Appelez-nous
|
- |
|
|
|
| 4 |
201423 |
|
Receptacle |
00 |
Appelez-nous
|
- |
|
|
|
| 5 |
201838 |
|
Starter Socket |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
201840 |
|
Starter |
00 |
Appelez-nous
|
- |
|
|
|
| 7 |
RO41 |
 |
Lid Switch (w/tub Light) (Replaces: 201946) |
00 |
|
Immediately |
$ 27.76 |
|
|
| 8 |
202807 |
|
Recept For Fluorescent Lamp |
00 |
Appelez-nous
|
- |
|
|
|
| 9 |
203081 |
|
Timer Motor |
00 |
Appelez-nous
|
- |
|
|
|
| 10 |
203158 |
|
Temperature Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 11 |
203159 |
|
Fabric Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 13 |
203182 |
|
Timer |
00 |
Appelez-nous
|
- |
|
|
|
| 15 |
203733 |
|
Trigger Pad & Unbal Lever |
00 |
Appelez-nous
|
- |
|
|
|
| 16 |
204497 |
|
Major Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
204498 |
|
Fabric Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 18 |
204499 |
|
Timer |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
COMM PART |
|
Button Kit For 2-3158 (Replaces: 204692) |
00 |
Appelez-nous
|
- |
|
|
|
| 23 |
204697 |
|
Button Kit For 2-3169 |
00 |
Appelez-nous
|
- |
|
|
|
| 24 |
205222 |
 |
Button Kit For 2-3169-1 (Replaces: 204698) |
00 |
|
Immediately |
$ 94.17 |
|
|
| 25 |
204968 |
 |
Plunger & Bracket Assembly |
00 |
|
|
$ 26.05 |
|
|
| 26 |
204970 |
|
Timer Motor 120-60 Rpr |
00 |
Appelez-nous
|
- |
|
|
|
| 27 |
204976 |
|
Timer Motor 120-60 Rpr |
00 |
Appelez-nous
|
- |
|
|
|
| 28 |
205336 |
|
Water Level Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 29 |
205338 |
|
Button Kit For 2-5336-1 |
00 |
Appelez-nous
|
- |
|
|
|
| 30 |
205339 |
|
Button Kit For 2-5336 |
00 |
Appelez-nous
|
- |
|
|
|
| 31 |
W10820036 |
 |
Switch, Lid (w/o Tub Light) (Replaces: 205415) |
00 |
|
Immediately |
$ 27.45 |
|
|
| 32 |
210866 |
|
Twin Speed Nut |
00 |
Appelez-nous
|
- |
|
|
|
| 33 |
211225 |
|
Pad For Unbalance Bumper |
00 |
Appelez-nous
|
- |
|
|
|
| 34 |
211250 |
|
Fastener |
00 |
Appelez-nous
|
- |
|
|
|
| 35 |
WP489399 |
 |
Screw (Replaces: 211252) |
00 |
|
|
$ 6.26 |
|
|
| 36 |
WP90767 |
 |
Screw (Replaces: 211294) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 37 |
211410 |
|
Screw, Hex Hd No.8 X 3/8 Inch |
00 |
|
|
$ 6.64 |
|
|
| 38 |
211500 |
|
Washer,bracke To Top Cover |
00 |
Appelez-nous
|
- |
|
|
|
| 39 |
212084 |
|
Bracket For Suds Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 40 |
212220 |
|
Screw-hex Hd Type B No.6 X 15/16 |
00 |
Appelez-nous
|
- |
|
|
|
| 41 |
212937 |
|
Moisture Barrier |
00 |
Appelez-nous
|
- |
|
|
|
| 42 |
WP22001619 |
 |
Air Dome And Tube (Replaces: 212942) |
00 |
|
|
$ 75.73 |
|
|
| 43 |
212990 |
|
Control Panel |
00 |
|
|
$ 36.53 |
|
|
| 44 |
212994 |
|
Glass F/control Panel-right |
00 |
Appelez-nous
|
- |
|
|
|
| 45 |
213005 |
|
Cushion |
00 |
Appelez-nous
|
- |
|
|
|
| 46 |
213006 |
|
Bracket |
00 |
Appelez-nous
|
- |
|
|
|
| 47 |
213008 |
|
Bracket |
00 |
Appelez-nous
|
- |
|
|
|
| 48 |
213010 |
|
Pin For Lid Switch |
00 |
|
|
$ 28.98 |
|
|
| 49 |
213012 |
|
Bracket For Lamp Socket |
00 |
Appelez-nous
|
- |
|
|
|
| 50 |
213022 |
|
Retainer |
00 |
Appelez-nous
|
- |
|
|
|
| 51 |
213023 |
|
Retainer |
00 |
|
|
$ 6.64 |
|
|
| 52 |
213026 |
|
Clip |
00 |
Appelez-nous
|
- |
|
|
|
| 53 |
213052 |
|
Glass For Control Panel-lef |
00 |
Appelez-nous
|
- |
|
|
|
| 54 |
213079 |
|
Brace For Unbalance Lever |
00 |
Appelez-nous
|
- |
|
|
|
| 55 |
WP67006908 |
 |
Screw-temp. Switch To Panel (Replaces: 213117) |
00 |
|
Immediately |
$ 7.16 |
|
|
| 56 |
213323 |
|
Fastener, Exhaust Duct Kit |
00 |
Appelez-nous
|
- |
|
|
|
| 57 |
213501 |
|
Screw, No.6-20 X 1-1/8 Inch |
00 |
|
|
$ 12.03 |
|
|
| 58 |
213718 |
|
Lid Switch Plunger |
00 |
|
|
$ 12.10 |
|
|
| 59 |
213719 |
|
Unbalance Lever |
00 |
Appelez-nous
|
- |
|
|
|
| 60 |
WP213720 |
 |
Spring (Replaces: 213720) |
00 |
|
|
$ 7.63 |
|
|
| 61 |
WP3400014 |
|
Screw-timer To Control Pane (Replaces: 213966) |
00 |
|
|
$ 6.98 |
|
|
| 62 |
213998 |
|
Control Panel |
00 |
|
|
$ 90.85 |
|
|
| 63 |
214452 |
|
Control Panel, Sun-glow |
01 |
Appelez-nous
|
- |
|
|
|
| 64 |
WP596669 |
 |
Clamp,water Level Swtch Tube (Replaces: 410296) |
00 |
|
Immediately |
$ 7.56 |
|
|
| 65 |
W10756178 |
 |
Screw (Replaces: 910182) |
00 |
|
|
$ 5.39 |
|
|
| NI |
200862 |
|
Ballast |
00 |
Appelez-nous
|
- |
|
|
|

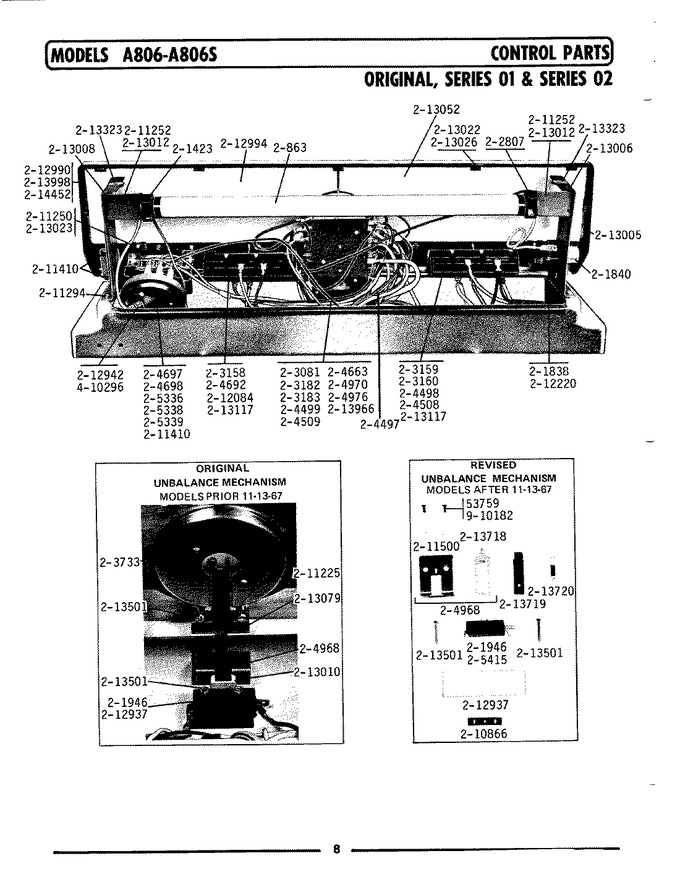

View Diagram in Separate Window
