| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
Y013783 |
|
Gasket, Inlet Hose |
00 |
|
|
$ 18.72 |
|
|
| 2 |
Y059137 |
|
Hose 31/32`` Per Foot Branch St |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
Y059141 |
|
Ctn. 50 Ft. 31/32 Drain Hos |
00 |
Appelez-nous
|
- |
|
|
|
| 4 |
WP285655 |
 |
Hose Clamp - 1-5/8 Inch (Replaces: 200461) |
00 |
|
Immediately |
$ 7.55 |
|
|
| 5 |
WP76314 |
 |
Inlet Hose Assy. (Replaces: 200672) |
00 |
|
|
$ 38.79 |
|
|
| 6 |
WP76314 |
|
Inlet Hose, Cold 5 Ft. (Replaces: 200675) |
00 |
|
|
$ 38.79 |
|
|
| 7 |
3810FF |
|
Inlet Hose, Hot 10 Ft. (Replaces: 200681) |
00 |
|
Immediately |
$ 26.11 |
|
|
| 8 |
WP76314 |
|
Inlet Hose, Cold 10 Ft. (Replaces: 200682) |
00 |
|
|
$ 38.79 |
|
|
| 9 |
WP76314 |
|
Inlet Hose, Hot 6 Ft. (Replaces: 200688) |
00 |
|
|
$ 38.79 |
|
|
| 11 |
200757 |
|
Inlet Hose, Hot 4 Ft. |
00 |
Appelez-nous
|
- |
|
|
|
| 12 |
WP616099 |
 |
Clamp, Spray Arm Hose (Replaces: 200900) |
00 |
|
Immediately |
$ 7.03 |
|
|
| 14 |
200961 |
|
Screen Washer, Inlet Hose |
00 |
Appelez-nous
|
- |
|
|
|
| 15 |
76660 |
 |
Siphon Break Kit (Replaces: 201112) |
00 |
|
Immediately |
$ 119.93 |
|
|
| 16 |
201486 |
|
Inlet Hose, Hot 8 Ft. |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
WP76314 |
|
Inlet Hose, Cold 8 Ft. (Replaces: 201487) |
00 |
|
|
$ 38.79 |
|
|
| 18 |
WP596669 |
 |
Hose Clamp (Replaces: 201575) |
00 |
|
Immediately |
$ 7.56 |
|
|
| 19 |
WP596669 |
|
Hose Clamp - 1-1/16 Inch (Replaces: 202515) |
00 |
|
Immediately |
$ 7.56 |
|
|
| 21 |
WP89503 |
 |
Inlet Hose Assy. (Replaces: 202860) |
00 |
|
Immediately |
$ 21.68 |
|
|
| 22 |
WP89503 |
|
Carton Of 25 Hose, 5` (Replaces: 202861) |
00 |
|
Immediately |
$ 21.68 |
|
|
| 23 |
WP89503 |
|
Hose, Inlet Assy. (Replaces: 205828) |
00 |
|
Immediately |
$ 21.68 |
|
|
| 24 |
206154 |
 |
Injector Tube With Seal |
00 |
|
|
$ 50.55 |
|
|
| 25 |
WP16272 |
 |
Hose Coupling (Replaces: 211111) |
00 |
|
|
$ 7.04 |
|
|
| 28 |
211448 |
|
Clamp |
00 |
Appelez-nous
|
- |
|
|
|
| 29 |
WP285655 |
|
Clamp, 1-1/16`` (Replaces: 211641) |
00 |
|
Immediately |
$ 7.55 |
|
|
| 30 |
211704 |
 |
Drain Hose |
00 |
|
|
$ 78.91 |
|
|
| 32 |
WP22001619 |
 |
Air Dome And Tube (Replaces: 212942) |
00 |
|
|
$ 75.73 |
|
|
| 33 |
WP213013 |
 |
Hose, Injector (Replaces: 213013) |
00 |
|
Immediately |
$ 44.40 |
|
|
| 34 |
WP213015 |
 |
Injector Nozzle (Replaces: 213015) |
00 |
|
Immediately |
$ 7.29 |
|
|
| 35 |
WP216201 |
 |
Valve For Injector Sub (Replaces: 213016) |
00 |
|
Immediately |
$ 18.88 |
|
|
| 36 |
WP213045 |
 |
Drain Hose-tub To Pump (Replaces: 213045) |
00 |
|
Immediately |
$ 43.57 |
|
|
| 37 |
WP22213057 |
 |
Sleeve For Injector (Replaces: 213057) |
00 |
|
|
$ 8.06 |
|
|
| 38 |
WP214433 |
 |
Tube, Inlet To Tub (Replaces: 214433) |
00 |
|
Immediately |
$ 28.17 |
|
|
| 39 |
215120 |
|
Seal For Injector Tube |
00 |
|
|
$ 5.83 |
|
|
| 40 |
Y310632 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 41 |
Y310842 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 43 |
WP596669 |
|
Clamp,water Level Swtch Tube (Replaces: 410296) |
00 |
|
Immediately |
$ 7.56 |
|
|
| NI |
WP596669 |
|
Hose Clamp - 9/16 Inch (Replaces: 400179) |
00 |
|
Immediately |
$ 7.56 |
|
|

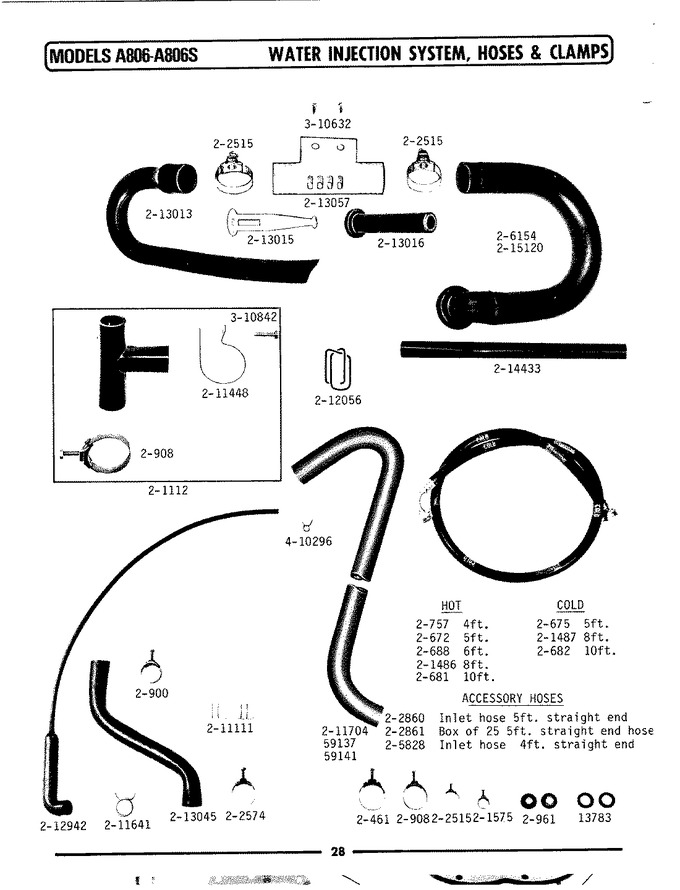

View Diagram in Separate Window
Print Part List
