| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP3390631 |
 |
Screw, Bearing Insert (Replaces: Y015408) |
01 |
|
|
$ 7.04 |
|
|
| 2 |
Y052734 |
|
Nut |
01 |
Appelez-nous
|
- |
|
|
|
| 3 |
WP62739 |
 |
Nut (Replaces: Y052740) |
01 |
|
|
$ 6.85 |
|
|
| 4 |
Y054867 |
|
Washer, Lock |
01 |
Appelez-nous
|
- |
|
|
|
| 5 |
W10175939 |
 |
Bolt & Gasket Assy.(short) (Replaces: 200744) |
01 |
|
|
$ 7.79 |
|
|
| 6 |
200813 |
|
Gear Case Cover Assembly |
01 |
Appelez-nous
|
- |
|
|
|
| 7 |
200846 |
 |
Clamp - Tub Cover |
01 |
|
|
$ 62.11 |
|
|
| 8 |
WP616099 |
 |
Clamp, Spray Arm Hose (Replaces: 200900) |
01 |
|
Immediately |
$ 7.03 |
|
|
| 9 |
201765 |
|
Tub Cover |
01 |
Appelez-nous
|
- |
|
|
|
| 10 |
201807 |
|
Motor - Two Speed 120-60 |
01 |
Appelez-nous
|
- |
|
|
|
| 11 |
202203 |
|
Pump As Pak |
01 |
Appelez-nous
|
- |
|
|
|
| 12 |
WP3367052 |
 |
Clamp, Hose (Replaces: 202574) |
01 |
|
|
$ 7.49 |
|
|
| 13 |
203193 |
|
Gear Housing W/studs & Tube |
01 |
Appelez-nous
|
- |
|
|
|
| 14 |
203274 |
|
Base With Damper Pads |
01 |
Appelez-nous
|
- |
|
|
|
| 15 |
203319 |
|
Cabinet-white |
01 |
Appelez-nous
|
- |
|
|
|
| 16 |
203438 |
|
Trans & Center Assm. Lg Tub |
01 |
Appelez-nous
|
- |
|
|
|
| 17 |
1N4004 |
|
Damper W/bolt & Clip (Replaces: 203725) |
01 |
Appelez-nous
|
- |
|
|
|
| 18 |
204439 |
 |
Screw & Fstner Assy(frt.panel) |
01 |
|
|
$ 8.80 |
|
|
| 19 |
204497 |
|
Major Wire Harness |
01 |
Appelez-nous
|
- |
|
|
|
| 20 |
204807 |
|
Grnd.wire,supp.plte To Top Cvr |
01 |
Appelez-nous
|
- |
|
|
|
| 21 |
205000 |
 |
Glide Kit (4 W/poly Lube) (Replaces: 204998) |
01 |
|
|
$ 62.00 |
|
|
| 22 |
205000 |
|
Glide & Spring Kit |
01 |
|
|
$ 62.00 |
|
|
| 23 |
WP489503 |
 |
Clamp - 15/16`` (Replaces: 205161) |
01 |
|
Immediately |
$ 9.68 |
|
|
| 24 |
205484 |
|
Outer Tub |
01 |
Appelez-nous
|
- |
|
|
|
| 25 |
205529 |
 |
Nut & Bolt Kit For Tub Clam |
01 |
|
|
$ 6.58 |
|
|
| 26 |
205811 |
|
Counterweight |
01 |
Appelez-nous
|
- |
|
|
|
| 27 |
205999 |
|
Motor Mount Assm Complete |
01 |
|
|
$ 61.84 |
|
|
| 28 |
210172 |
|
Lock Washer |
01 |
Appelez-nous
|
- |
|
|
|
| 29 |
WP489128 |
 |
Screw, Ground Wire To Base--na (Replaces: 210186) |
01 |
|
|
$ 9.79 |
|
|
| 30 |
WP210385 |
 |
Nut, Lock (Replaces: 210385) |
01 |
|
|
$ 6.26 |
|
|
| 31 |
WP210684 |
 |
Foot, Rubber (Replaces: 210684) |
01 |
|
Immediately |
$ 14.09 |
|
|
| 32 |
211100 |
|
Washer, Cushion |
01 |
Appelez-nous
|
- |
|
|
|
| 33 |
WP211232 |
 |
Seal (Replaces: 211232) |
01 |
|
|
$ 62.96 |
|
|
| 34 |
WP211949 |
 |
Nut, Eyebolt (Replaces: 211949) |
01 |
|
|
$ 6.88 |
|
|
| 35 |
212336 |
 |
Screw, No.8 X 3/4 Inch |
01 |
|
|
$ 61.65 |
|
|
| 36 |
212979 |
 |
Washer, Tub Brace |
01 |
|
|
$ 91.61 |
|
|
| 37 |
WP213045 |
 |
Drain Hose-tub To Pump (Replaces: 213045) |
01 |
|
Immediately |
$ 43.57 |
|
|
| 38 |
213053 |
|
Brace, Tub |
01 |
Appelez-nous
|
- |
|
|
|
| 39 |
213054 |
|
Centering Spring - 3 Used |
01 |
Appelez-nous
|
- |
|
|
|
| 40 |
W11129403 |
 |
Eye Bolt For Center Spring (Replaces: 213120) |
01 |
|
|
$ 12.23 |
|
|
| 41 |
WP27001200 |
 |
Screw,cbnt.to Frnt Of Base--na (Replaces: 213122) |
01 |
|
|
$ 6.91 |
|
|
| 42 |
213737 |
|
Motor Shield - Poly |
01 |
Appelez-nous
|
- |
|
|
|
| 43 |
214376 |
|
Spacer, Front Panel |
01 |
Appelez-nous
|
- |
|
|
|
| 44 |
WP214433 |
 |
Tube, Inlet To Tub (Replaces: 214433) |
01 |
|
Immediately |
$ 28.17 |
|
|
| 45 |
215058 |
|
Pad, Cabinet Bumper |
01 |
Appelez-nous
|
- |
|
|
|
| 46 |
22003428 |
 |
Leg, Adjustable (w/nut) (Replaces: Y302699) |
01 |
|
Immediately |
$ 14.41 |
|
|
| 47 |
WP3400029 |
 |
Nut, Washered Lock (Replaces: Y311426) |
01 |
|
Immediately |
$ 6.98 |
|
|

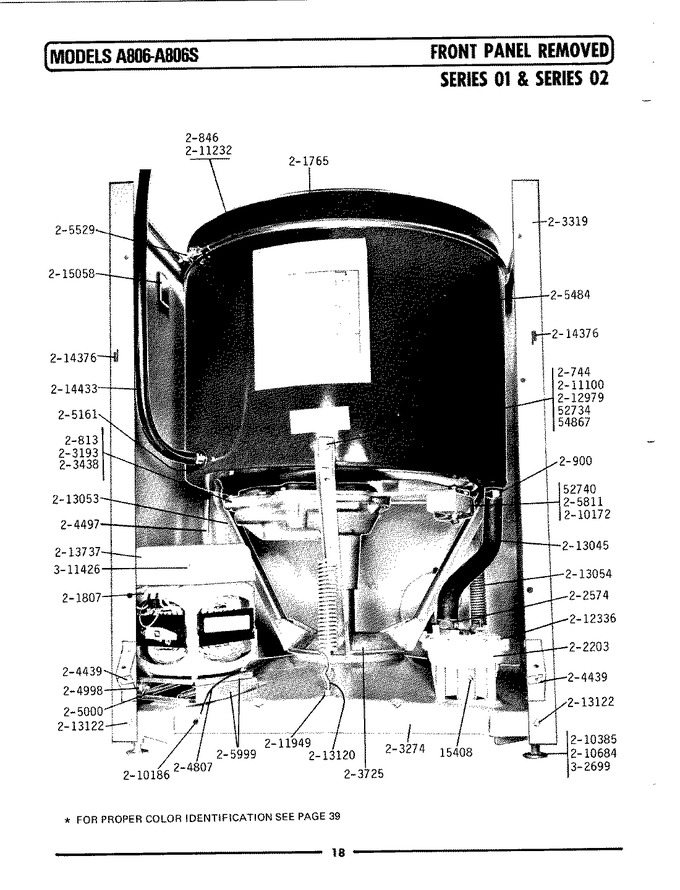

View Diagram in Separate Window
Print Part List
