| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
203158 |
|
Temperature Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 2 |
303319 |
|
Cabinet |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
204439 |
 |
Screw & Fstner Assy(frt.panel) |
00 |
|
|
$ 8.80 |
|
|
| 4 |
204498 |
|
Fabric Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 5 |
204499 |
|
Timer |
00 |
Appelez-nous
|
- |
|
|
|
| 8 |
COMM PART |
|
Button Kit For 2-3158 (Replaces: 204692) |
00 |
Appelez-nous
|
- |
|
|
|
| 9 |
204705 |
|
Button Kit For 2-4498 |
00 |
|
|
$ 124.94 |
|
|
| 10 |
204706 |
|
Button Kit For 2-4508 |
00 |
Appelez-nous
|
- |
|
|
|
| 11 |
205160 |
|
Top Cover-white |
00 |
Appelez-nous
|
- |
|
|
|
| 13 |
205174 |
|
Timer Dial, Sun-glow |
00 |
Appelez-nous
|
- |
|
|
|
| 14 |
205336 |
|
Water Level Switch |
00 |
Appelez-nous
|
- |
|
|
|
| 15 |
205338 |
|
Button Kit For 2-5336-1 |
00 |
Appelez-nous
|
- |
|
|
|
| 16 |
205339 |
|
Button Kit For 2-5336 |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
WP210385 |
 |
Nut, Lock (Replaces: 210385) |
00 |
|
|
$ 6.26 |
|
|
| 18 |
WP210684 |
 |
Foot, Rubber (Replaces: 210684) |
00 |
|
Immediately |
$ 14.09 |
|
|
| 19 |
WP211726 |
 |
Hinge, Ball (Replaces: 211726) |
00 |
|
Immediately |
$ 7.18 |
|
|
| 20 |
212073 |
|
Lid-white |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
WP22001650 |
 |
Fastener, Panel (Replaces: 212982) |
00 |
|
Immediately |
$ 7.34 |
|
|
| 23 |
212994 |
|
Glass F/control Panel-right |
00 |
Appelez-nous
|
- |
|
|
|
| 24 |
212998 |
|
Front Panel-white |
00 |
|
|
$ 8.63 |
|
|
| 25 |
213007 |
|
Screw, Cabinet |
00 |
|
|
$ 10.99 |
|
|
| 26 |
213052 |
|
Glass For Control Panel-lef |
00 |
Appelez-nous
|
- |
|
|
|
| 28 |
213322 |
|
Maytag Decal |
00 |
Appelez-nous
|
- |
|
|
|
| 29 |
214196 |
|
Timer Knob-clear Acrylic |
00 |
Appelez-nous
|
- |
|
|
|
| 30 |
214452 |
|
Control Panel, Sun-glow |
00 |
Appelez-nous
|
- |
|
|
|
| 31 |
214697 |
|
Easy-grip Knob |
00 |
Appelez-nous
|
- |
|
|
|
| 32 |
22003428 |
 |
Leg, Adjustable (w/nut) (Replaces: Y302699) |
00 |
|
Immediately |
$ 14.41 |
|
|
| NI |
213077 |
|
Cap For Timer Knob |
00 |
Appelez-nous
|
- |
|
|
|
| NI |
WP212716 |
 |
Bumper, Lid (Replaces: 212716) |
00 |
|
Immediately |
$ 7.88 |
|
|

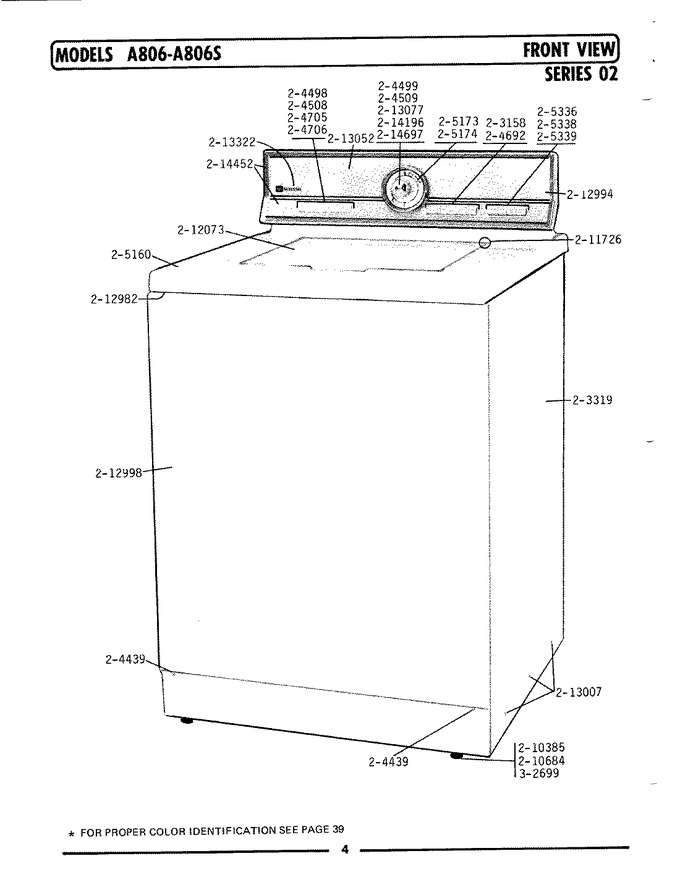

View Diagram in Separate Window
