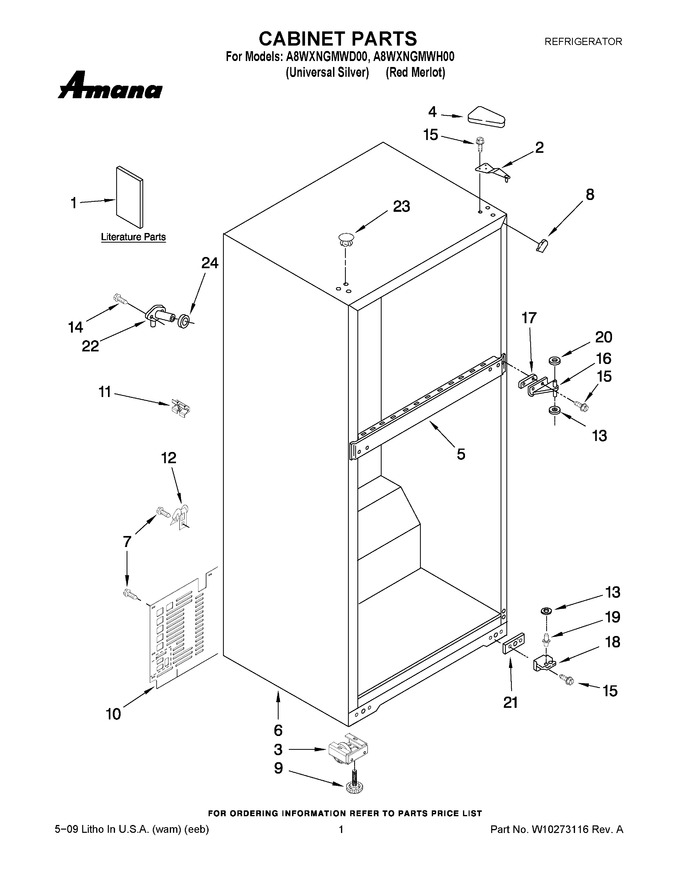

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Dispenser Front Parts


07 - Shelf Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10211588		Use & Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Manual Ref./frz.				$ 30.30
1	2265591		Service & Wiring Sheet		Appelez-nous	-
1	W10211589		Energy Label		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 89.51
3	WPW10142530		Roller-front   (Replaces: W10142530)			Immediately	$ 101.23
4	2213360D		Cover, Hinge		Appelez-nous	-
7	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
8	2166003D		Corner Filler		Appelez-nous	-
9	WPW10133299		Leveler   (Replaces: W10133299)				$ 10.58
10	WP2264132		Cover, Unit   (Replaces: 2266389)				$ 97.52
11	2266506		Spacer-back-cb				$ 12.33
12	549193		Clamp,cord				$ 12.05
13	WP487576		Washer   (Replaces: 487576)			Immediately	$ 8.89
14	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.01
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
16	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 70.34
17	2166043		Shim, Hinge Center				$ 59.80
18	WP2325482		Hinge Butt   (Replaces: 2325482)			Immediately	$ 68.57
19	WP2325483		Hinge-pin, Bottom   (Replaces: 2325483)			Immediately	$ 6.47
20	WP489467		Washer   (Replaces: 489341)			Immediately	$ 9.79
21	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)				$ 6.99
22	WP2196157		Fitting, Water Tube   (Replaces: 2174760)			Immediately	$ 10.79
23	2326060		Hole Plug				$ 56.81
24	WP1106508		Seal   (Replaces: 1106508)			Immediately	$ 8.94
