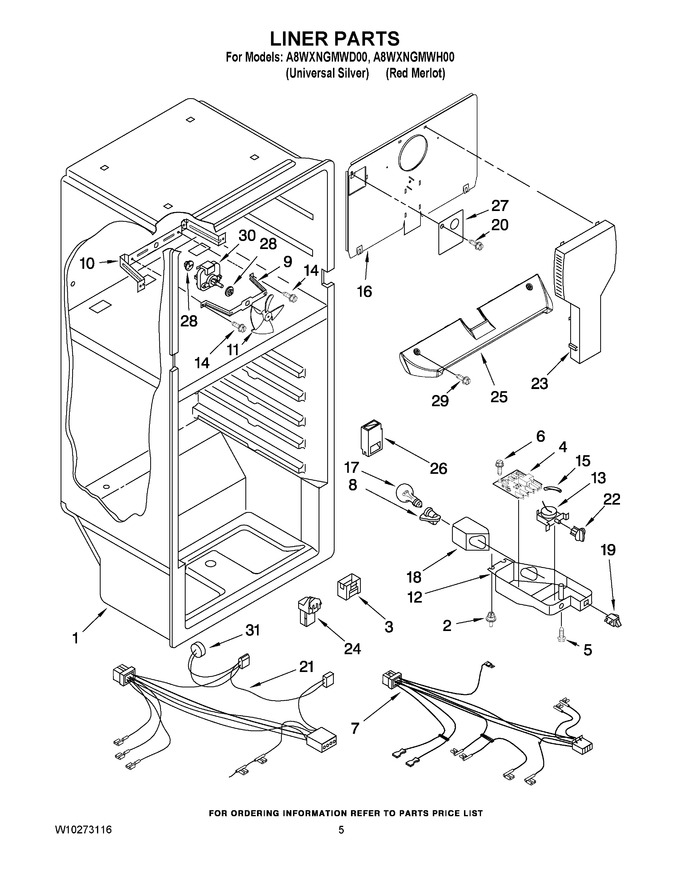

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Dispenser Front Parts
07 - Shelf Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 939962 | Rivet-plastic |
|
$ 10.65 | |||||
| 3 | 2183061 | Cover, Air Diffuser |
|
$ 36.62 | |||||
| 4 | 4388931 | Control, Adaptive Defrost (Replaces: 2303825) |
|
Immediately | $ 219.58 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 | |||||
| 6 | WP487353 | Screw (Replaces: 488693) |
|
$ 6.81 | |||||
| 7 | 2265572 | Wire Assembly Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: W10180172) |
|
$ 36.24 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 12 | 2264732 | Control Box |
|
$ 32.24 | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2325701) |
|
Immediately | $ 162.37 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.26 | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 7.16 | |||||
| 16 | 2264669 | Cover-evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2252970) |
|
Immediately | $ 10.17 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 93.36 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 21 | W10290502 | Wiring-freezer (includes Item 33) (Replaces: W10164671) |
|
- | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 23.74 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Hood And Foil Assembly |
|
- | |||||
| 25 | 2261978 | Cover, Air Return |
|
$ 135.09 | |||||
| 26 | 2221992 | Air Diffuser |
|
$ 35.67 | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2217783) |
|
$ 40.47 | |||||
| 28 | WP2264462 | Grommet, Motor (Replaces: 2264462) |
|
Immediately | $ 39.57 | ||||
| 29 | WP489474 | Screw (Replaces: 2262178) |
|
Immediately | $ 7.17 | ||||
| 30 | WPW10189703 | Evaporator Fan Motor (Replaces: 2319208) |
|
Immediately | $ 63.15 | ||||
| 31 | WPW10225581 | Defrost, Bi-metal (Replaces: 2266067) |
|
Immediately | $ 45.69 |
