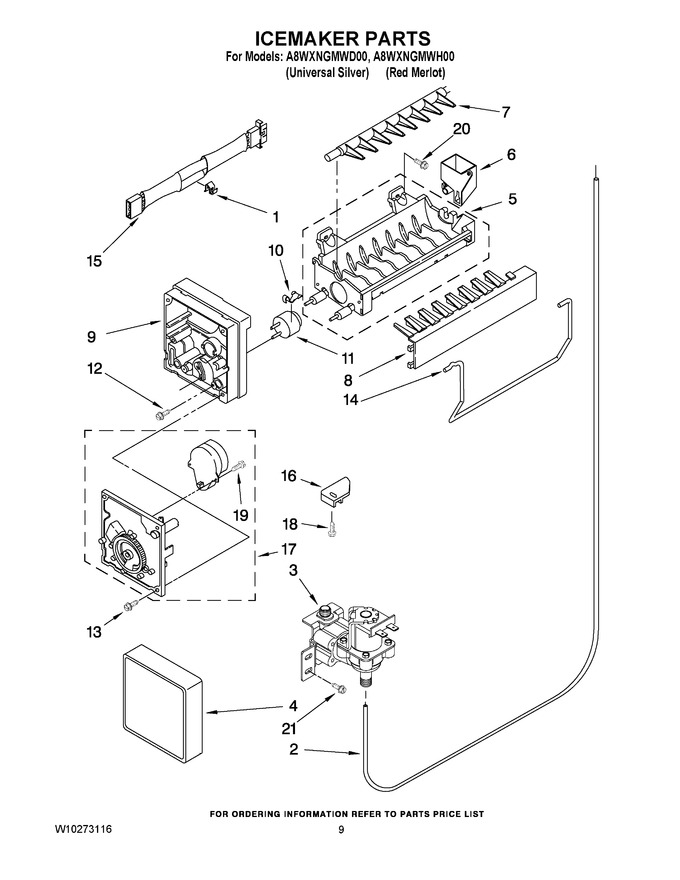

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP628379		Clip, Fuse   (Replaces: 628379)				$ 9.51
2	W10823511		Tube Water   (Replaces: 2181944)			Immediately	$ 29.17
3	WP2315576		Valve (single), Solenoid   (Replaces: 2210494)			Immediately	$ 86.38
4	2174157		Cover		Appelez-nous	-
5	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: W10122527)				$ 209.84
6	W10122561		Cup, Water Fill   (Replaces: 628515)				$ 24.99
7	WP627843		Ejector   (Replaces: 627843)				$ 75.24
8	WPW10122563		Ice Striper   (Replaces: W10122563)				$ 85.22
9	WP2195914		Support   (Replaces: 2194712)				$ 94.11
10	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 9.95
11	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 628397)			Immediately	$ 98.26
12	8533917		Screw				$ 12.03
13	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
14	WP627792		Shut Off Arm   (Replaces: 627792)				$ 76.08
15	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 112.11
16	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 28.95
17	8201515		Module Assembly (includes Item 19)   (Replaces: W10223929)			Immediately	$ 127.48
18	WP489478		Screw   (Replaces: 489478)				$ 6.98
19	489136		Screw				$ 9.26
20	WP488163		Screw   (Replaces: 488208)				$ 6.79
21	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
100	4317943		Icemaker, Complete Assembly   (Replaces: W10190952)			Immediately	$ 170.06
