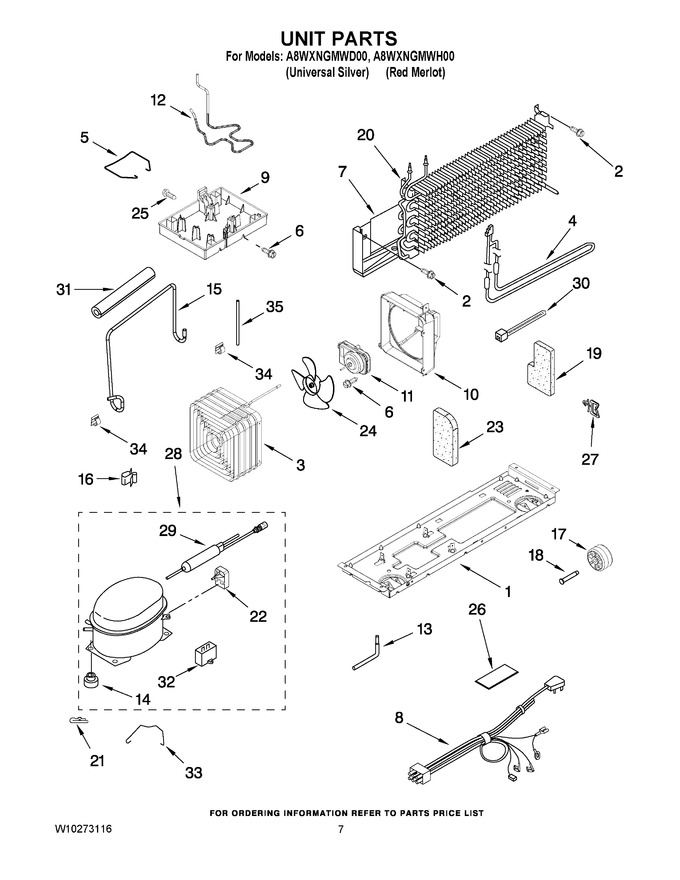

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10127456) |
|
$ 125.81 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 3 | WP2264004 | Condenser (Replaces: 2264004) |
|
$ 178.25 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | WPW10151677 | Wire Assy. Unit (Replaces: W10151677) |
|
$ 117.35 | |||||
| 9 | WP2263928 | Evaporating Tray (Replaces: 2263928) |
|
$ 127.73 | |||||
| 10 | WP2263929 | Air Baffle (Replaces: 2263929) |
|
$ 81.11 | |||||
| 11 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 64.28 | ||||
| 12 | 2316181 | Tube, Discharge (incl. Pre-cooler) |
|
$ 58.16 | |||||
| 13 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 93.10 | |||||
| 14 | WPW10169124 | Grommet (service) (Replaces: 2264447) |
|
Immediately | $ 6.47 | ||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 7.16 | |||||
| 15 | 2264131 | Extension, Tube-heat |
|
$ 14.46 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.47 | |||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 285.62 | ||||
| 21 | 24364001 | Clip, Compressor |
|
- | |||||
| 22 | WP2225929 | Start-device, Combination (start Relay And Overload) (service) (Replaces: 2225929) |
|
Immediately | $ 115.21 | ||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 94.28 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 5.82 | |||||
| 26 | 2266360 | Shield, Electrical |
|
- | |||||
| 27 | 2266467 | Clip, Harness |
|
- | |||||
| 28 | 2217634 | Compressor (includes Items 14, 22, 29 & 32) (also Order 482801 Installation Kit & 876765 Tube Kit) |
|
- | |||||
| 29 | W10843121 | Drier (production) (Replaces: 2319825) |
|
Immediately | $ 47.31 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.11 | |||||
| 31 | 2264838 | Sleeve |
|
$ 79.10 | |||||
| 32 | WPW10662129 | Capacitator (service) (Replaces: 2169373) |
|
Immediately | $ 52.97 | ||||
| 32 | WPW10662129 | Capacitator (production) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 33 | 2212996 | Bale Strap |
|
$ 10.90 | |||||
| 34 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.37 | ||||
| 35 | 2264278 | Tube, Drain |
|
$ 68.37 | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 |
