SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Air Flow Parts
09 - Air Flow Parts

Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts
12 - Icemaker Parts

No Diagram Image Available
13 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12893051 Tech Sheet Appelez-nous -
1 12842135SP Use And Care Guide Appelez-nous -
2 W10175447 Cover, Hinge (fc) (black) Appelez-nous -
3 WP489349 Screw (6)   (Replaces: 67006303) In-Stock Immediately $ 7.09

4 12992604 Screw Appelez-nous -
5 12626910ED Hinge Top, Rc   (Replaces: 12626907ED) Special Order $ 107.03

6 12626911ED Hinge Top, Fc   (Replaces: 12626908ED) Special Order $ 76.33

7 12629801B Cover, Hinge (rc) (black) Special Order $ 25.13

8 WP2300868 Union, Tube   (Replaces: 61006182) In-Stock Immediately $ 26.15

9 67003485 Cover, Corner (black) In-Stock Immediately $ 18.98

10 12998303ED Hinge, Bottom (fc) Appelez-nous -
11 67006564 Screw (8) In-Stock Immediately $ 6.92

12 WP489483 Screw   (Replaces: 67006492) Special Order $ 9.78

13 67006493 Closure, Door Special Order $ 19.93

14 WP67005716 Shim, Closure   (Replaces: 67005716) Special Order $ 6.71

15 12998304ED Hinge, Bottom (rc) Appelez-nous -
16 WP8281196 Screw (2)   (Replaces: 67006521) In-Stock Immediately $ 6.47

17 WP67006687 Grille, Toe (black)   (Replaces: 67006687) Special Order $ 95.80

18 67005117 Cover, Water Valve Appelez-nous -
20 67006697 Screw, Roller (rear) Special Order $ 12.88

21 71003131 Bolt, Roller Adjust (front)   (Replaces: 67006611) In-Stock Immediately $ 6.07

22 A3076901 Plug-button Special Order $ 5.70

23 12580303 Roller And Bracket Assembly (4) Appelez-nous -
24 12544121 Valve, Dual Water Appelez-nous -
25 12695601 Shim, Top Hinge Appelez-nous -
26 W11177593 Brake, Foot   (Replaces: 67003868) Special Order $ 10.44

27 67003796 Fiber, Acoustic Special Order $ 19.27

28 67006425 Screw, Cover (10) In-Stock Immediately $ 6.26

29 67002230 Cover, Mc Back Appelez-nous -
30 M0104102 Clip, Cord Special Order $ 8.10

31 W10833902 Clamp, Tube   (Replaces: M0108105) Special Order $ 9.89

32 W10462018 Cord, Power   (Replaces: 13015202) Appelez-nous -
33 B5759649 Gasket, Mc Back Appelez-nous -
34 12831101 Sweep, Tube   (Replaces: 67004101) Special Order $ 11.17


    View Diagram in Separate Window     Print Icon   Print Part List

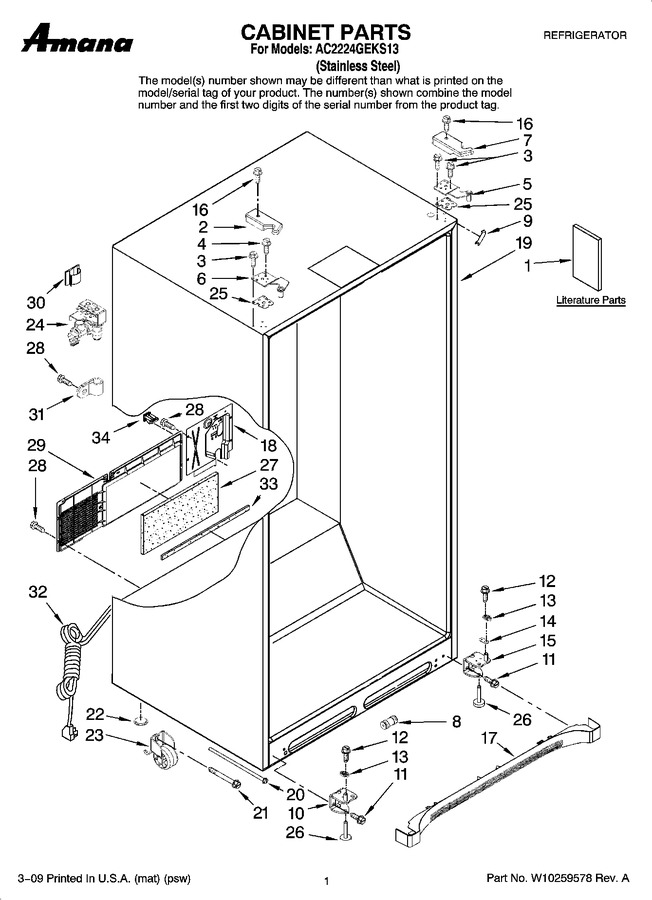

Diagram for AC2224GEKS13
