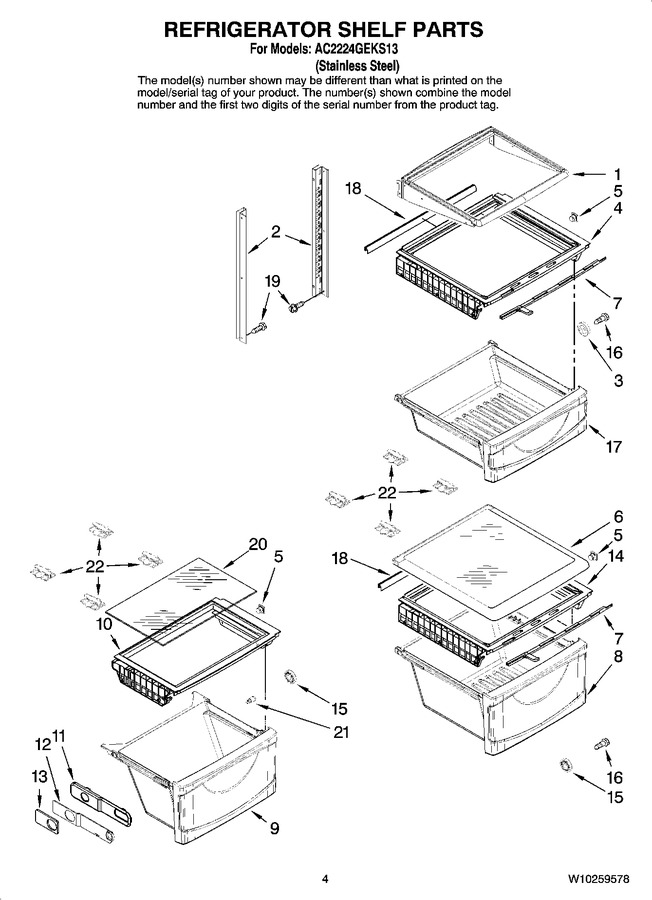

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004072		Shelf, Stat. (2)		Appelez-nous	-
2	67003840		Rail (2)		Appelez-nous	-
3	67004169		Roller, Crisper				$ 5.81
4	67004973		Frame, Bldr Adj Crisper		Appelez-nous	-
5	WP12603701		Support, Crisper Frame (12)   (Replaces: 12603701)				$ 9.28
6	67006880		Shelf, Crisper Top		Appelez-nous	-
7	67004884		Slide, Control				$ 25.18
8	67005816		Pan, Crisper (large)				$ 68.73
9	67005817		Pan, Meat		Appelez-nous	-
10	67004247		Frame, Meat Shelf		Appelez-nous	-
11	12774102		Housing, Control		Appelez-nous	-
12	67004311		Slide, Temp Cont.				$ 69.25
13	67004177		Gasket, Temp Cont.		Appelez-nous	-
14	67004140		Frame, Crisper (large)		Appelez-nous	-
15	67004133		Roller, Pan		Appelez-nous	-
16	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 9.25
17	67004308		Pan, Crisper (small)		Appelez-nous	-
18	67004249		Seal, Crisper Frame (rear)		Appelez-nous	-
19	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 6.26
20	67004132		Glass, Meat Shelf		Appelez-nous	-
21	67004174		Pin, Roller				$ 6.11
22	67004883		Mount, Crisper		Appelez-nous	-
