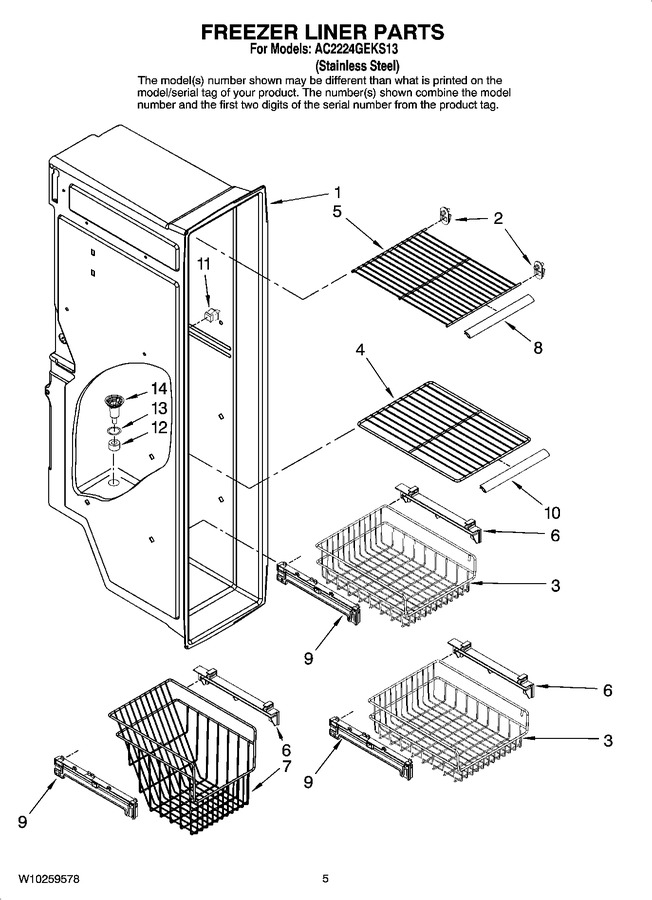

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	C8973801		Support, Freezer Shelf (2)				$ 8.35
3	67004490		Basket, Freezer (small)		Appelez-nous	-
4	67004691		Shelf, Lower (1)		Appelez-nous	-
5	67003895		Shelf, Upper (1)		Appelez-nous	-
6	12790103		Rail, Right Basket		Appelez-nous	-
7	67006235		Basket, Lower		Appelez-nous	-
8	12314101		Trim, Upr Shelf		Appelez-nous	-
9	12790003		Rail, Left Basket		Appelez-nous	-
10	67004181		Trim, Lwr Shelf		Appelez-nous	-
11	W11396033		Switch, Light   (Replaces: 12466103)			Immediately	$ 33.57
12	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 6.67
13	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 9.83
14	12456901		Funnel, Drain		Appelez-nous	-
