SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

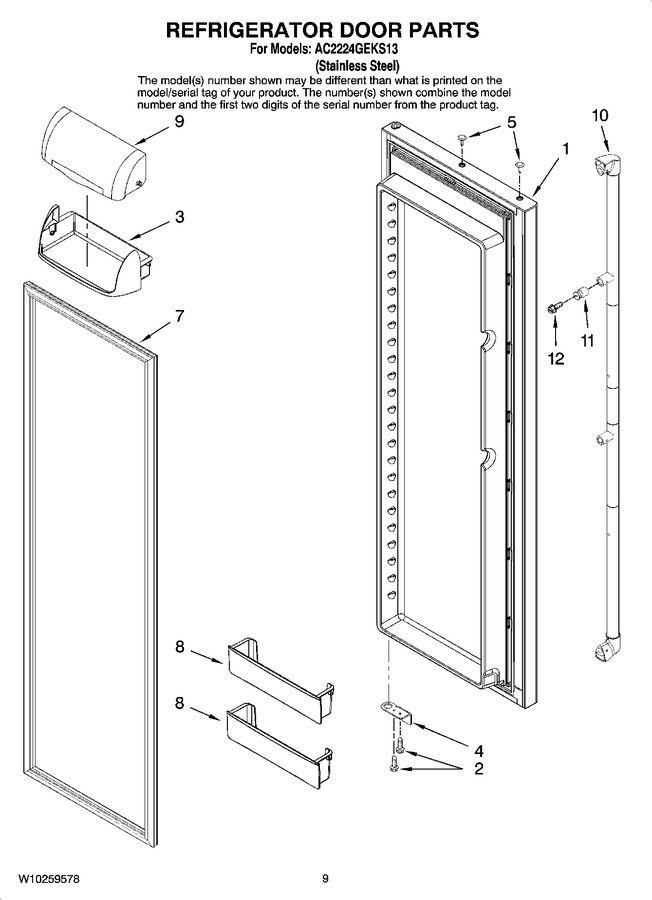

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12818250SQ		Door, Refrigerator (stainless)		Appelez-nous	-
2	R9800670		Screw (2)   (Replaces: M0223230)				$ 8.44
3	67002304		Tray, Dairy		Appelez-nous	-
4	67007017		Stop, Door (black)		Appelez-nous	-
5	M0311604		Plug, Button (2) (black)		Appelez-nous	-
7	W10840101		Gasket, Door (black)   (Replaces: W10133482)				$ 280.50
8	67004314		Bucket, Door (2)		Appelez-nous	-
9	67002957		Door, Dairy		Appelez-nous	-
10	WP12850908		Handle, Stainless   (Replaces: 12850908)				$ 257.68
11	67006109		Mount, Handle		Appelez-nous	-
12	WPW10133608		Screw, Handle   (Replaces: W10133608)				$ 7.47

    View Diagram in Separate Window       Print Part List
