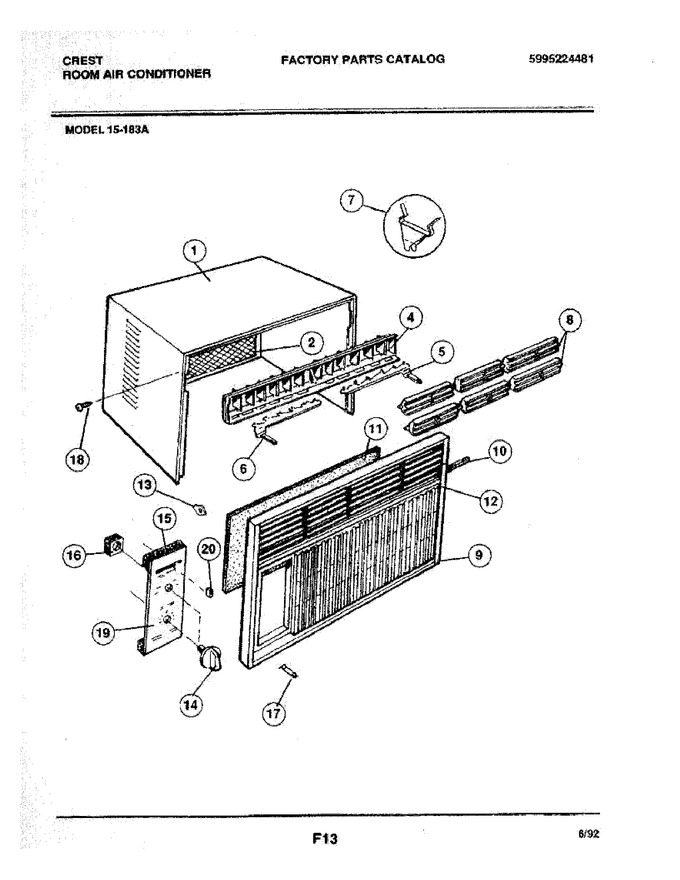

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
04 - Control Panel
05 - Motor/fan
07 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303210207 | Grill,rear |
|
- | |||||
| 4 | 5303002459 | Louver W/link |
|
- | |||||
| 5 | 5303002162 | Link-rh |
|
- | |||||
| 6 | 5303002163 | Link-lh |
|
- | |||||
| 7 | 5303001844 | Clip-link |
|
- | |||||
| 8 | 5308017160 | Louver |
|
- | |||||
| 9 | 5303289953 | Front-rac |
|
- | |||||
| 10 | 08017353 | Seal - Mullion |
|
- | |||||
| 11 | 5303014139 | Filter |
|
- | |||||
| 12 | 5303289929 | Insert |
|
- | |||||
| 13 | 3203495 | Clip-filter |
|
- | |||||
| 14 | 5303284039 | Knob-control |
|
- | |||||
| 15 | 5303001984 | Seal |
|
- | |||||
| 16 | 5303001775 | Spacer |
|
- | |||||
| 17 | 5308010914 | Clip-front To Base |
|
- | |||||
| 18 | 5303271346 | Screw-front |
|
- | |||||
| 19 | 5303208850 | Dial Plate |
|
- | |||||
| 20 | 5303207316 | Knob Slide |
|
- | |||||
| 08017132 | Seal Evap. Outlet |
|
- |
