SELECT A DIAGRAM

01 - Cover


03 - Wrapper


04 - Control Panel


05 - Motor/fan


07 - Compressor


09 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

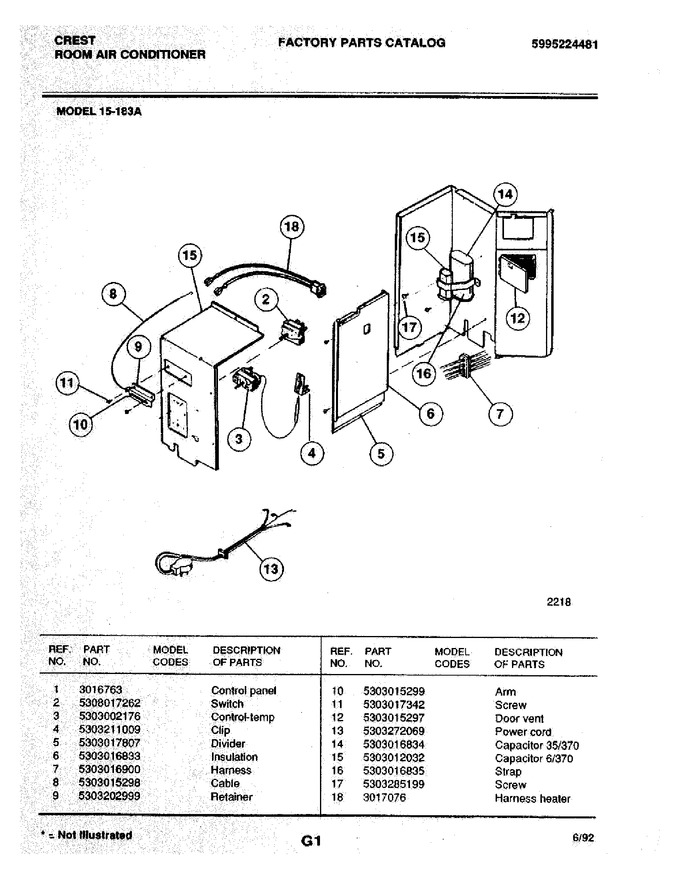

1	3016763		Panel - Control		Appelez-nous	-
2	5308017262		Switch		Appelez-nous	-
3	5303002176		Control Temp		Appelez-nous	-
4	5303211009		Clip		Appelez-nous	-
5	5303017807		Divider		Appelez-nous	-
6	5303016833		Insulation		Appelez-nous	-
7	5303016900		Harness		Appelez-nous	-
8	5303015298		Cable		Appelez-nous	-
9	5303202999		Retainer		Appelez-nous	-
10	5303015299		Arm - Actuator		Appelez-nous	-
11	5303017342		Screw		Appelez-nous	-
12	5303015297		Door-vent		Appelez-nous	-
13	5303272069		Cord-electric Power		Appelez-nous	-
14	5303016834		Capacitor-35/370		Appelez-nous	-
15	5303012032		Capacitor-6/370		Appelez-nous	-
16	5303016835		Strap		Appelez-nous	-
17	5303285199		Screw,phillips ,8-18 X 0.38 ,sq.recess ,truss Head		Appelez-nous	-
18	3017076		Harness-heater		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
