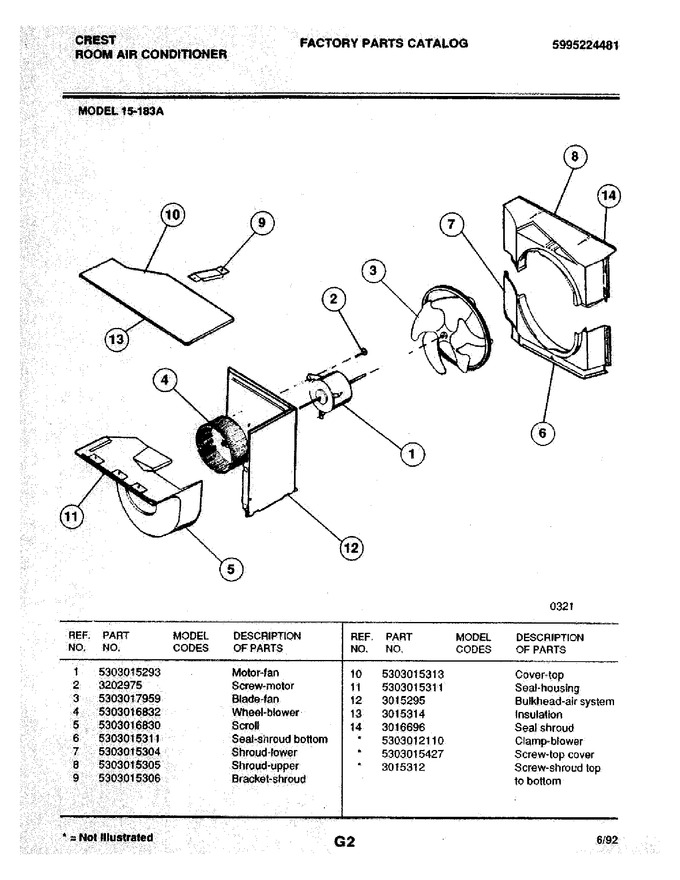

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
04 - Control Panel
05 - Motor/fan
07 - Compressor
09 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015293 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 5303017959 | Blade-fan |
|
- | |||||
| 4 | 5303016832 | Wheel-blower |
|
- | |||||
| 5 | 5303016830 | Scroll |
|
- | |||||
| 6 | 5303015311 | Seal-shroud Bottom |
|
- | |||||
| 7 | 5303015304 | Shroud - Lower |
|
- | |||||
| 8 | 5303015305 | Shroud - Upper |
|
- | |||||
| 9 | 5303015306 | Bracket - Shroud |
|
- | |||||
| 10 | 5303015313 | Cover - Top |
|
- | |||||
| 11 | 5303015311 | Seal - Housing |
|
- | |||||
| 12 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 13 | 3015314 | Insulation |
|
- | |||||
| 14 | 3016696 | Seal Shroud |
|
- | |||||
| 5303012110 | Clamp-blower |
|
$ 8.14 | ||||||
| 3015312 | Screw-shroud |
|
- | ||||||
| 5303015427 | Screw-top Cover |
|
- |
