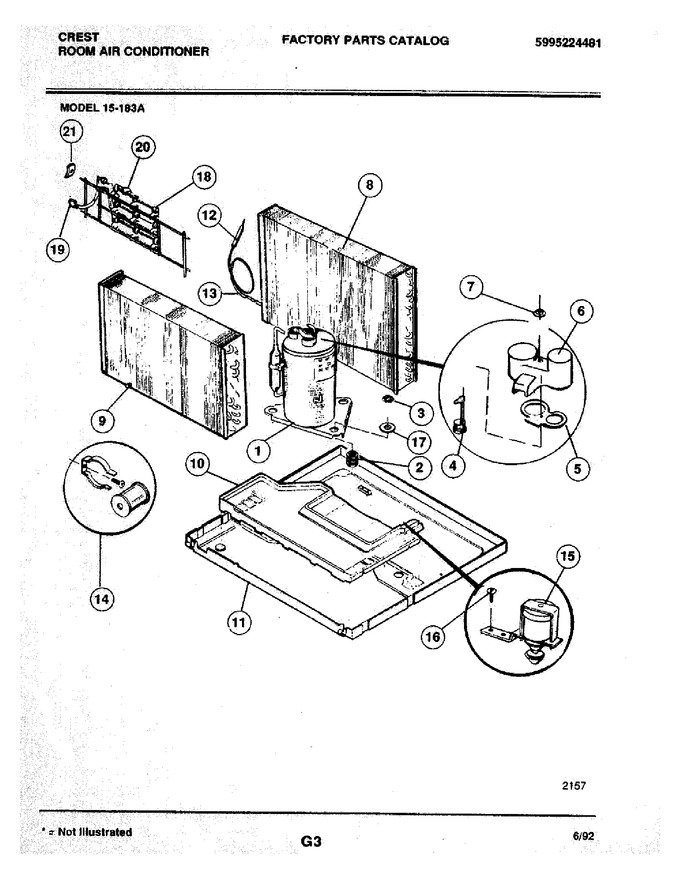

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272312 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 5303272433 | Overload |
|
- | |||||
| 5 | 5303272298 | Gasket |
|
- | |||||
| 6 | 3206230 | Cover-terminal |
|
- | |||||
| 7 | 5303211017 | Nut-cover |
|
- | |||||
| 8 | 5303208674 | Condenser |
|
- | |||||
| 9 | 5303015457 | Evaporator |
|
- | |||||
| 10 | 5303208665 | Tray-evaporator |
|
- | |||||
| 11 | 5303284437 | Base |
|
- | |||||
| 12 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 13 | 5303001746 | Capillary Tube-cut To 35`` |
|
- | |||||
| 14 | 5303201723 | Starter Kit |
|
- | |||||
| 15 | 3017804 | Valve-drain |
|
- | |||||
| 16 | 5303209503 | Screw-valve |
|
- | |||||
| 17 | 5303002664 | Washer |
|
- | |||||
| 18 | 5303018573 | Heater |
|
- | |||||
| 19 | 3203548 | Harness |
|
- | |||||
| 20 | 5303018574 | Thermostat |
|
- | |||||
| 21 | 3018695 | Nut |
|
- |
