01 - Cabinet


02 - Cabinet Trim


03 - Control Compartment


04 - Control Panel


05 - Door Latch


06 - Oven Accessories


07 - Oven Door, Frameless


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

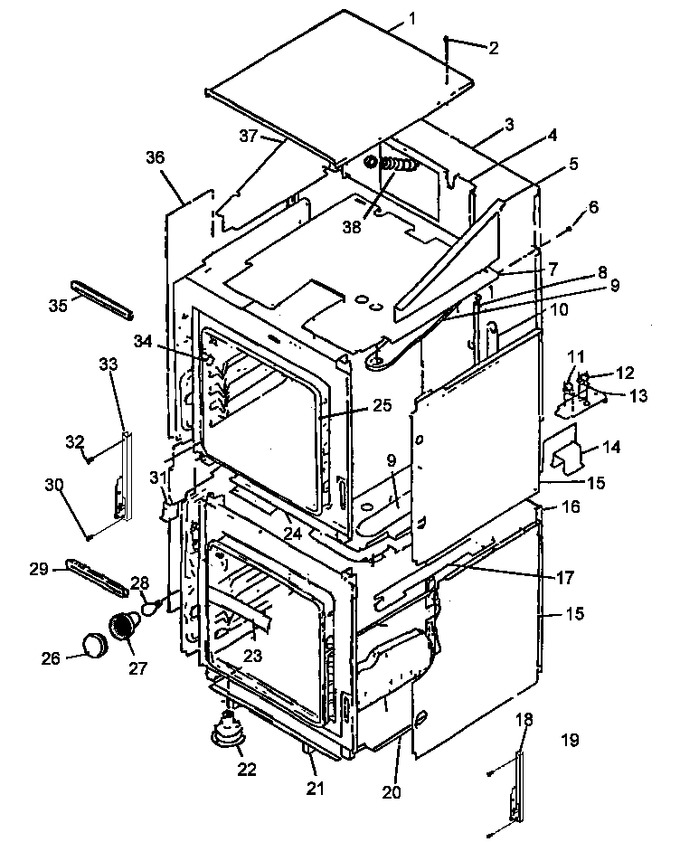

1	Y0040286		Cabinet Top Pyro W.o. Mm		Appelez-nous	-
2	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
3	Y0305628		Back, Upper Cabinet		Appelez-nous	-
4	Y0315557		Back, Control Compartment		Appelez-nous	-
5	Y0314834		Compartment, Control Rt		Appelez-nous	-
6	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
7	Y0052848		Upper Oven Top		Appelez-nous	-
8	0305420		Retainer, Insulation-rear		Appelez-nous	-
11	Y0042056		Switch Fan Spdt		Appelez-nous	-
15	Y0316868		Retainer, Insulation-side		Appelez-nous	-
18	Y0315425		Assy, Oven Hinge Rt		Appelez-nous	-
20	Y0316867		Oven Bottom-lower		Appelez-nous	-
21	Y0041019		Runner, Base-pyro W/o		Appelez-nous	-
22	Y0058526		Smoke Eliminator		Appelez-nous	-
23	40850CG		Shield, Reflector (cg)		Appelez-nous	-
25	314312CG		Oven Shell (wall Oven)		Appelez-nous	-
26	WP74011278		Assy, Oven Light   (Replaces: Y0302471)				$ 101.56
27	Y0042175		Bulb, Light		Appelez-nous	-
28	WP74011278		Assy, Oven Light   (Replaces: Y0302472)				$ 101.56
30	WP4159193		Screw, No.10-32x 5/16 Pan Ph H   (Replaces: Y0317065)				$ 4.29
32	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y0317066)			Immediately	$ 6.85
33	Y0315426		Assy, Oven Hinge Lt				$ 50.99
34	Y0040848		Probe Recept. Cover Stainless		Appelez-nous	-
35	Y0042015		Latch Handle Guide Pyro		Appelez-nous	-
36	Y0315145		Panel, Side (single)		Appelez-nous	-
37	Y0314835		Compartment, Control Lt		Appelez-nous	-
38	Y0052947		Assy, Conduit		Appelez-nous	-
NI	Y0042045		Limit Control-upper Oven-200		Appelez-nous	-
