View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Cabinet Trim
03 - Control Compartment
04 - Control Panel
05 - Door Latch
06 - Oven Accessories
07 - Oven Door, Frameless
SELECT A DIAGRAM
New Model Search:

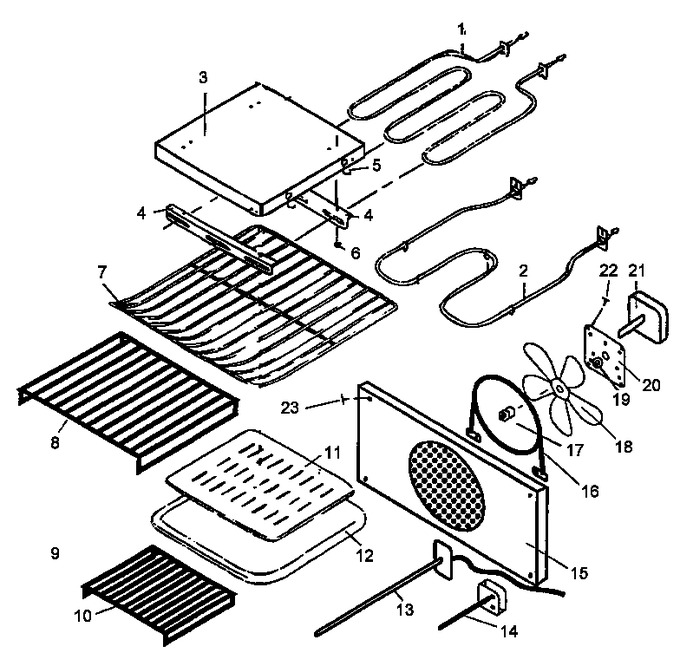

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0042138 | Element, Broil (240v-2800w) |
|
- | |||||
| 2 | WP77001092 | Element, Bake (240v-2800w) (Replaces: Y0042137) |
|
$ 130.93 | |||||
| 3 | Y0306503 | Reflector, Broil Element |
|
- | |||||
| 4 | Y0040902 | Broil Element Support Pyro |
|
- | |||||
| 5 | Y0067053 | Clip, Thermo Capillary |
|
- | |||||
| 6 | WP90767 | Screw, Sm (Replaces: Y0041816) |
|
Immediately | $ 7.04 | ||||
| 7 | 314782J | Rack, Oven 19 3/16`` X 14 3/4`` |
|
- | |||||
| 8 | 314781J | Rack, Oven 19 3/16`` X 14 3/4`` |
|
- | |||||
| 10 | Y0306531 | Rack, Broiler |
|
- | |||||
| 11 | 4396923 | Grid, Broiler (cg) (Replaces: 304451CG) |
|
Immediately | $ 52.04 | ||||
| 12 | 4396923 | Pan, Broiler (cg) (Replaces: 314175CG) |
|
Immediately | $ 52.04 | ||||
| 13 | Y0306502 | Thermostat, Hi Limit |
|
- | |||||
| 14 | WPY0314907 | Sensor, Temperature (Replaces: Y0314907) |
|
$ 201.45 | |||||
| 15 | 309774CG | Cover, Fan (enameled) |
|
- | |||||
| 16 | Y0305245 | Element, Conv Oven(240v-2200w) |
|
- | |||||
| 17 | 0307037 | Nut, Lt Hand Thread |
|
- | |||||
| 18 | Y0307036 | Blade, Fan |
|
- | |||||
| 19 | 0307038 | Washer (zn) |
|
- | |||||
| 21 | Y0307035 | Fan Assy, Convection (w/blade) |
|
- | |||||
| 22 | Y0091599 | Screw, No.10-32x1/2 (ph Taptite) |
|
- | |||||
| 23 | Y0041804 | Screw No.8x11/4 Ph F H |
|
- |
