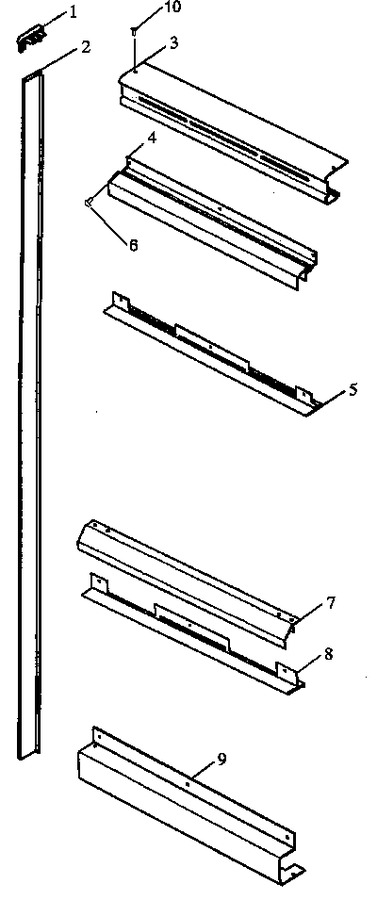

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307887B | Trim, Corner-rt (blk) |
|
- | |||||
| 1 | 307888B | Trim, Corner-lt (blk) |
|
- | |||||
| 2 | 308487B | Trim, Side Left |
|
- | |||||
| 2 | 308488B | Trim, Side Right |
|
- | |||||
| 3 | 307719B | Trim, Top (blk) |
|
- | |||||
| 4 | 308159B | Trim, Control Panel-top (blk) |
|
- | |||||
| 5 | 308160B | Trim, Control Panel-bot (blk) |
|
- | |||||
| 6 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 | ||||
| 9 | 307720B | Trim, Bottom (blk) |
|
- | |||||
| 10 | 31750319 | Screw, No.6-32 X .375 Fh (blk) |
|
- | |||||
| 10 | 31750306 | Screw, No.6-32 X .375 Flat Hd Ph |
|
- | |||||
| NI | Y0307205 | Brkt, Trim Corner |
|
- | |||||
| NI | Y0061164 | Screw No.8 - 18 X .250 |
|
- |
