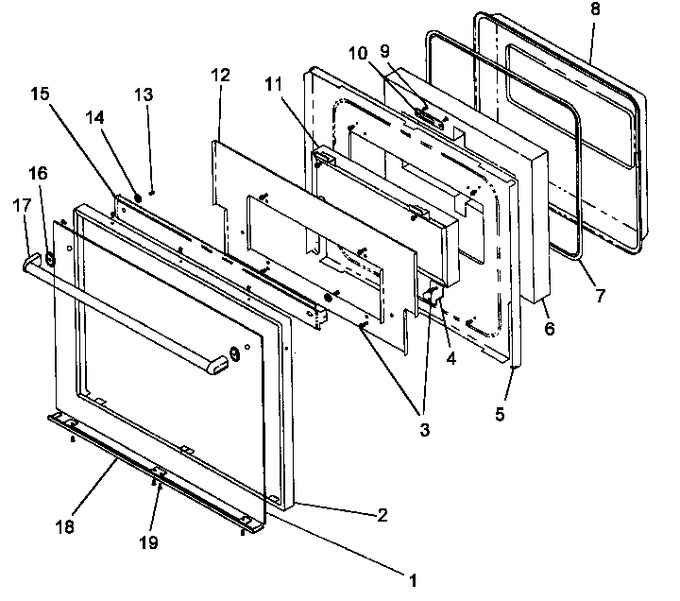

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307885B		Glass, Door (blk)		Appelez-nous	-
2	307886B		Frame, Oven Door (blk)		Appelez-nous	-
3	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
4	Y0052629		Retainer, Door Glass		Appelez-nous	-
4	Y0040955		Window Mtg. Brkt. Pk411		Appelez-nous	-
5	314833CG		Liner, Door (cg)		Appelez-nous	-
6	Y0041975		Insulation 2x20x72		Appelez-nous	-
7	31715901		Gasket, Oven Dr 82``				$ 14.46
8	40223CG		Backer, Oven Door (cg)		Appelez-nous	-
9	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
10	Y052039F		Latch Plate		Appelez-nous	-
11	0041491		Window Assy		Appelez-nous	-
12	308414B		Baffle, Inner Door		Appelez-nous	-
13	W11164114		Screw, No.10-24x3/4 (pan Ph Hd)   (Replaces: Y0041767)				$ 3.76
14	Y0307893		Bushing, Handle		Appelez-nous	-
15	0307891		Bracket, Handle Mtg.		Appelez-nous	-
16	309882B		Spacer, Handle (blk)		Appelez-nous	-
17	307884B		Handle, Oven Door (blk)		Appelez-nous	-
18	305587B		Angle, Glass Support (blk)		Appelez-nous	-
19	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	0300584		Label,cleaning Instr.		Appelez-nous	-
