02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

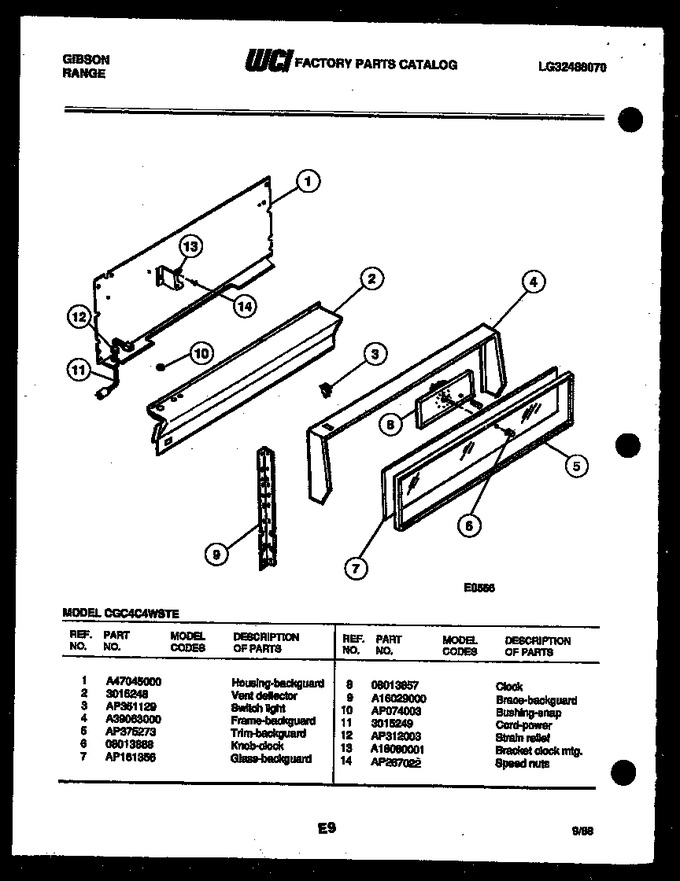

| 1 | A47045000 | Housing-backguard |
|
- | |||||
| 2 | 3015248 | Vent - Deflector |
|
- | |||||
| 3 | AP351129 | Switch Light |
|
- | |||||
| 4 | A39063000 | Frame-backguard |
|
- | |||||
| 5 | AP375273 | Trim-backguard |
|
- | |||||
| 6 | 08013888 | Knob - Clock |
|
- | |||||
| 7 | AP161356 | Glass-backguard |
|
- | |||||
| 8 | 08013857 | Clock |
|
- | |||||
| 9 | A16029000 | Brace - Backguard |
|
- | |||||
| 10 | AP074003 | Bushing-snap |
|
- | |||||
| 11 | 3015249 | Cord - Power |
|
- | |||||
| 12 | AP312003 | Strain Relief |
|
- | |||||
| 13 | A18060001 | Bracket Clock Mtg. |
|
- | |||||
| 14 | AP267022 | Speed Nuts |
|
- |
