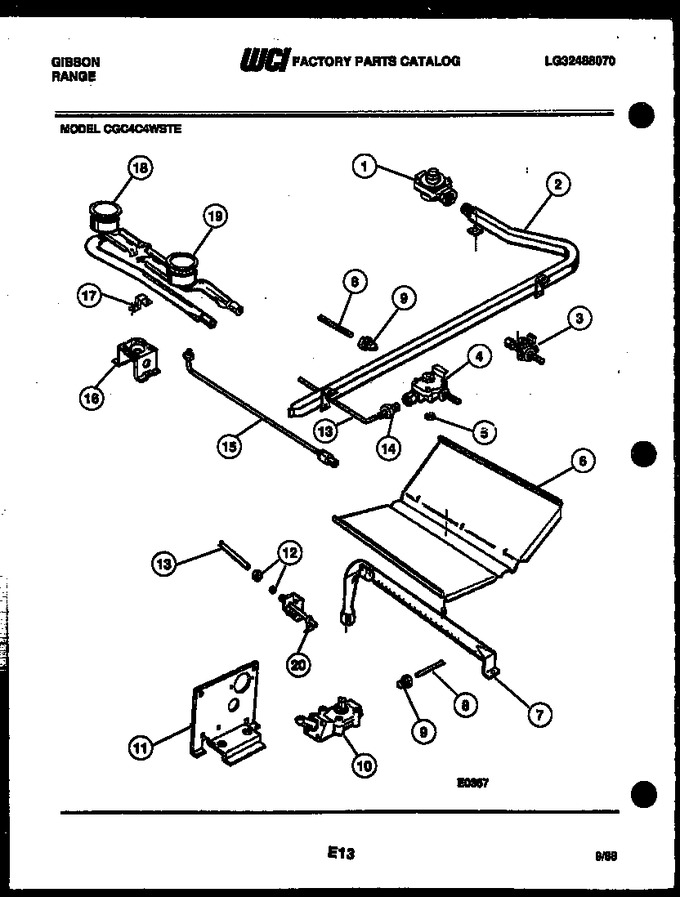

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	AP310007		Pressure Regul.		Appelez-nous	-
2	3017164		Manifold Pipe		Appelez-nous	-
3	08013940		Valve-top Burner		Appelez-nous	-
4	08013927		Thermostat		Appelez-nous	-
5	AP269004		Wing Nut		Appelez-nous	-
6	3131061		Baffle-oven Burner		Appelez-nous	-
7	AP072036		Burner Oven		Appelez-nous	-
8	08008364		Tubing-3/8 Feet		Appelez-nous	-
9	AP269017		Nut - 3/8 Loxit		Appelez-nous	-
10	AP385196		Valve Safety		Appelez-nous	-
11	3131069		Support - Oven Valve		Appelez-nous	-
12	AP269015		Nut Compression W/ Sleeve		Appelez-nous	-
13	08008367		Tubing		Appelez-nous	-
14	AP269018		Nut-3/16 Loxit		Appelez-nous	-
15	AP288034		Pilot Top Burner (2)		Appelez-nous	-
16	3016870		Support - Top Burner		Appelez-nous	-
17	AP344004		Shield-pilot		Appelez-nous	-
18	AP072044		Burner-rear Top		Appelez-nous	-
19	AP072043		Burner-front Top		Appelez-nous	-
20	AP288031		Pilot-oven		Appelez-nous	-
*10789	3131060		Clip-capillary		Appelez-nous	-
